This upper cabinet assembly features three-quarter-inch particleboard doors finished with plastic laminate on both sides, hung on concealed self-closing hinges with satin aluminum wire pulls. The interior surfaces are lined with melamine and fitted with recessed metal standards to support adjustable three-quarter-inch particleboard shelves. The cabinet mounts against a gypsum board wall, aligning with a gypsum board soffit and plastic laminate enclosure where indicated.

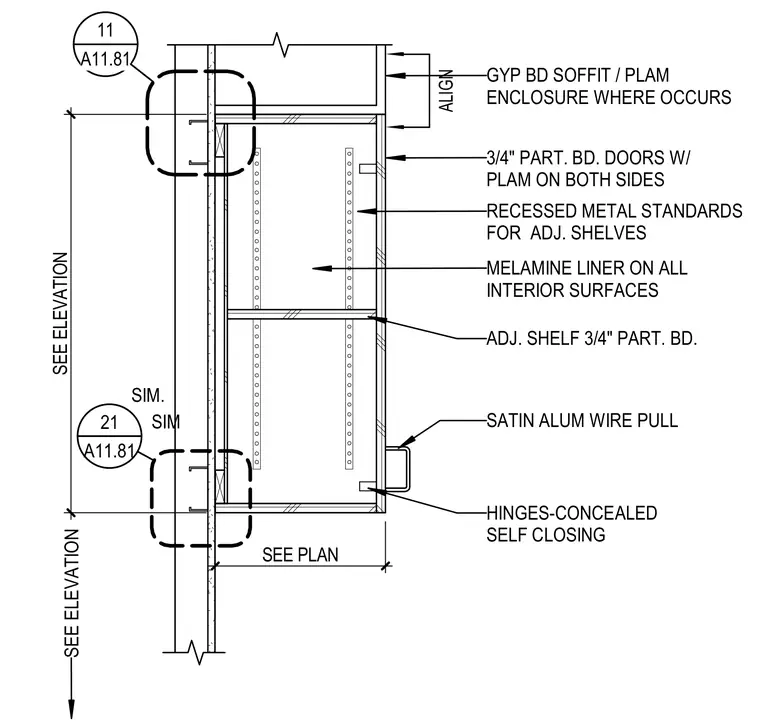

SIM. A11.81 21 SIM A11.81 11 MELAMINE LINER ON ALL INTERIOR SURFACES ADJ. SHELF 3/4" PART. BD. SATIN ALUM WIRE PULL HINGES-CONCEALED SELF CLOSING RECESSED METAL STANDARDS FOR ADJ. SHELVES 3/4" PART. BD. DOORS W/ PLAM ON BOTH SIDES GYP BD SOFFIT / PLAM ENCLOSURE WHERE OCCURS SEE ELEVATION SEE ELEVATION SEE PLAN ALIGN
