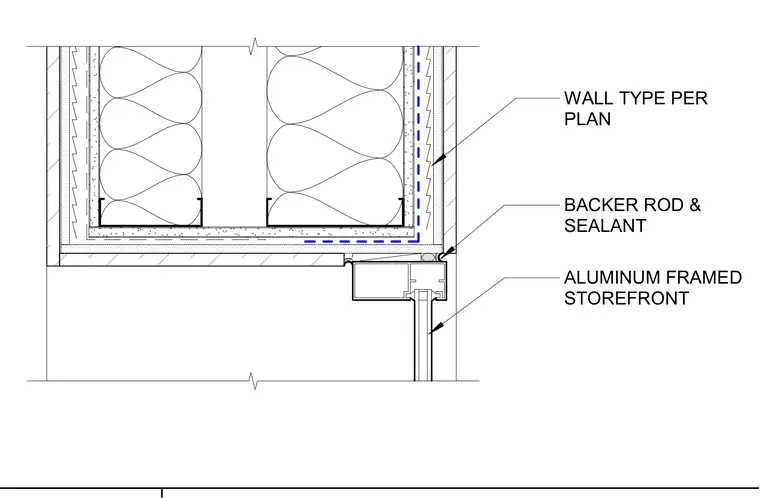

An aluminum framed storefront is tied into a wall type per plan. A backer rod and sealant joint seals the transition between the aluminum storefront frame and the adjacent wall finish.
