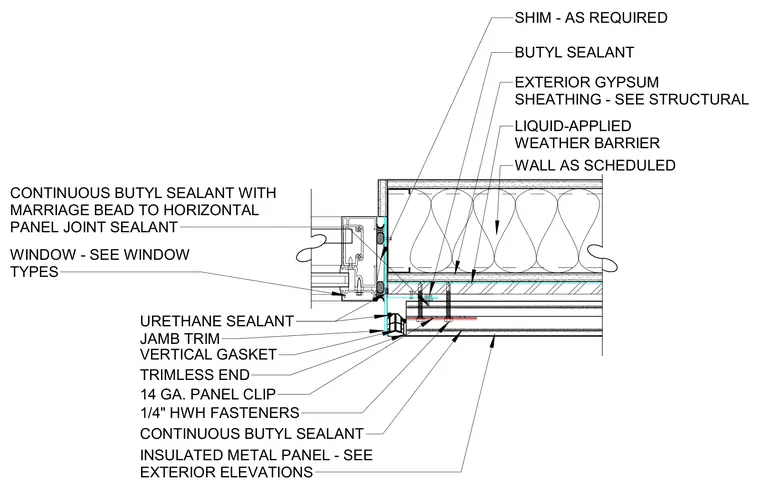

This window jamb detail interfaces an insulated metal panel wall with a window unit. The metal panel is secured using 14-gauge panel clips fastened with 1/4-inch hex washer head fasteners over a liquid-applied weather barrier and exterior gypsum sheathing. Shims are provided as required between the framing and the window assembly. A trimless end detail incorporates a vertical gasket and urethane sealant. Continuous butyl sealant is applied at the panel edge, including a marriage bead to the horizontal panel joint sealant.
WINDOW - SEE WINDOW TYPES INSULATED METAL PANEL - SEE EXTERIOR ELEVATIONS TRIMLESS END VERTICAL GASKET URETHANE SEALANT JAMB TRIM CONTINUOUS BUTYL SEALANT CONTINUOUS BUTYL SEALANT WITH MARRIAGE BEAD TO HORIZONTAL PANEL JOINT SEALANT BUTYL SEALANT SHIM - AS REQUIRED EXTERIOR GYPSUM SHEATHING - SEE STRUCTURAL 1/4" HWH FASTENERS 14 GA. PANEL CLIP LIQUID-APPLIED WEATHER BARRIER WALL AS SCHEDULED
