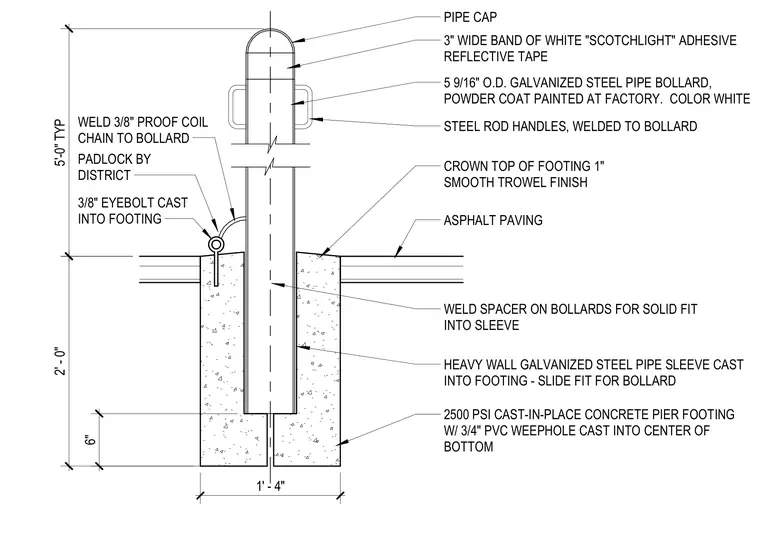

A removable galvanized steel pipe bollard is seated in a heavy-wall galvanized steel pipe sleeve within a two-foot-deep, 2500 PSI cast-in-place concrete pier footing surrounded by asphalt paving. The bollard features a welded pipe cap at the top, a three-inch-wide band of white reflective tape, and welded steel rod handles for lifting. Weld spacers are applied to the bollard for a solid fit into the sleeve. A 3/8-inch proof coil chain is welded to the bollard and secured with a padlock to a 3/8-inch eyebolt cast into the concrete footing. The concrete pier features a crowned, smooth trowel finish at the top and a 3/4-inch PVC weep hole cast into the center of the bottom.
PIPE CAP 5 9/16" O.D. GALVANIZED STEEL PIPE BOLLARD, POWDER COAT PAINTED AT FACTORY. COLOR WHITE 2500 PSI CAST-IN-PLACE CONCRETE PIER FOOTING W/ 3/4" PVC WEEPHOLE CAST INTO CENTER OF BOTTOM ASPHALT PAVING HEAVY WALL GALVANIZED STEEL PIPE SLEEVE CAST INTO FOOTING - SLIDE FIT FOR BOLLARD 1' - 4" 2' - 0" 5'-0" TYP 6" 3" WIDE BAND OF WHITE "SCOTCHLIGHT" ADHESIVE REFLECTIVE TAPE CROWN TOP OF FOOTING 1" SMOOTH TROWEL FINISH WELD SPACER ON BOLLARDS FOR SOLID FIT INTO SLEEVE WELD 3/8" PROOF COIL CHAIN TO BOLLARD 3/8" EYEBOLT CAST INTO FOOTING PADLOCK BY DISTRICT STEEL ROD HANDLES, WELDED TO BOLLARD
