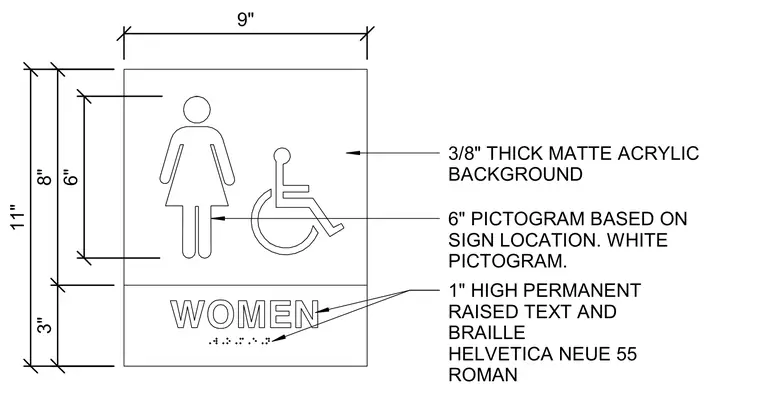

The sign consists of a three-eighths-inch thick matte acrylic background measuring nine inches wide by eleven inches high. A six-inch white pictogram is centered in the upper portion based on sign location. The lower portion features one-inch high permanent raised text in Helvetica Neue 55 Roman font accompanied by grade 2 Braille.
9" 8" 3" 1" HIGH PERMANENT RAISED TEXT AND BRAILLE HELVETICA NEUE 55 ROMAN 3/8" THICK MATTE ACRYLIC BACKGROUND 6" PICTOGRAM BASED ON SIGN LOCATION. WHITE PICTOGRAM. 6" 11"
