A-R99FW — Stair Landing at Basement

Architectural · A-R99FW

Stair Landing at Basement

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A-562
Discipline: Architectural

Materials

Metal (misc.)Stone

Elements

Railings / Guards Stairs

Text on the drawing

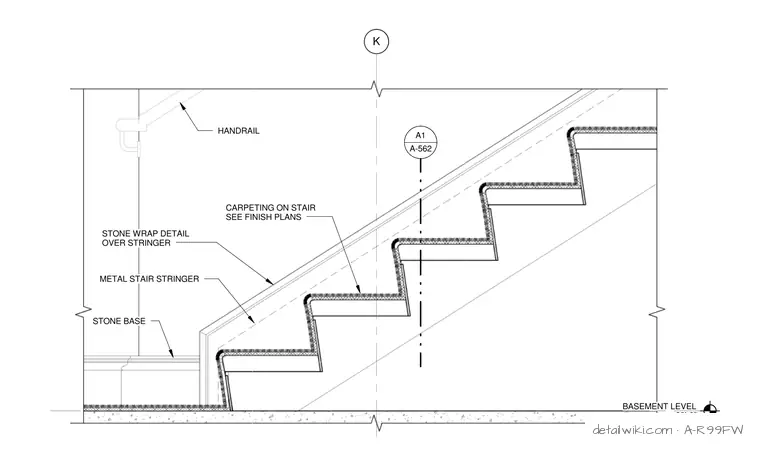

K BASEMENT LEVEL 88'-0" A1 A-562 STONE WRAP DETAIL OVER STRINGER METAL STAIR STRINGER STONE BASE CARPETING ON STAIR SEE FINISH PLANS HANDRAIL
