Architectural · A-R9777

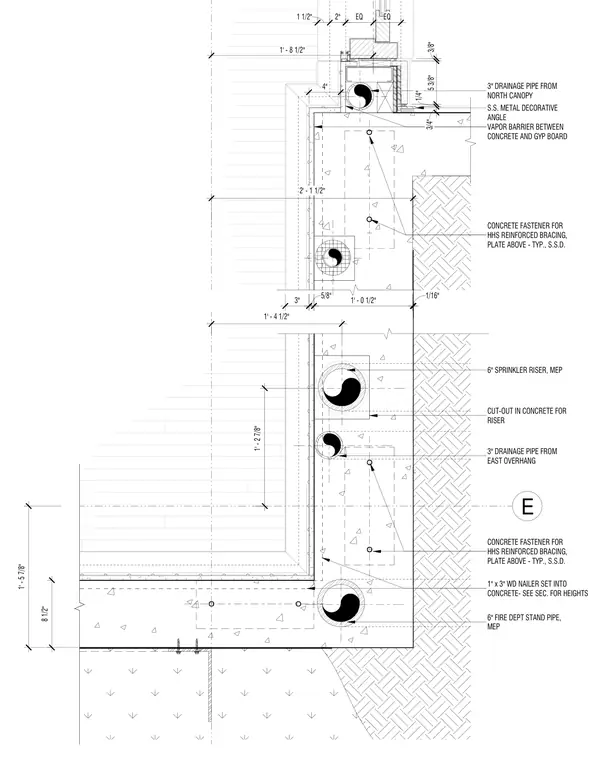

Foundation Plan Section at Northeast Corner with MEP Integration

Materials

Concrete Reinforced Concrete Steel Metal (misc.)Gypsum / Drywall

Elements

Stairs Canopies Foundations / Footings Bracing Waterproofing / Flashing Connections / Plates Reinforcing

About this detail

This plan section details the reinforced concrete foundation corner incorporating embedded MEP services, structural bracing, and finish elements. A vapor barrier is installed between the concrete and gypsum board assembly. Concrete fasteners secure the hollow structural section reinforced bracing and plate above typically. A one-by-three-inch wood nailer is set into the concrete with heights determined per section details. The assembly accommodates a six-inch sprinkler riser, a six-inch fire department standpipe, a three-inch drainage pipe from the north canopy, and a three-inch drainage pipe from the east overhang within designated cut-outs in the concrete. A stainless steel decorative angle finishes the exterior corner joint.
