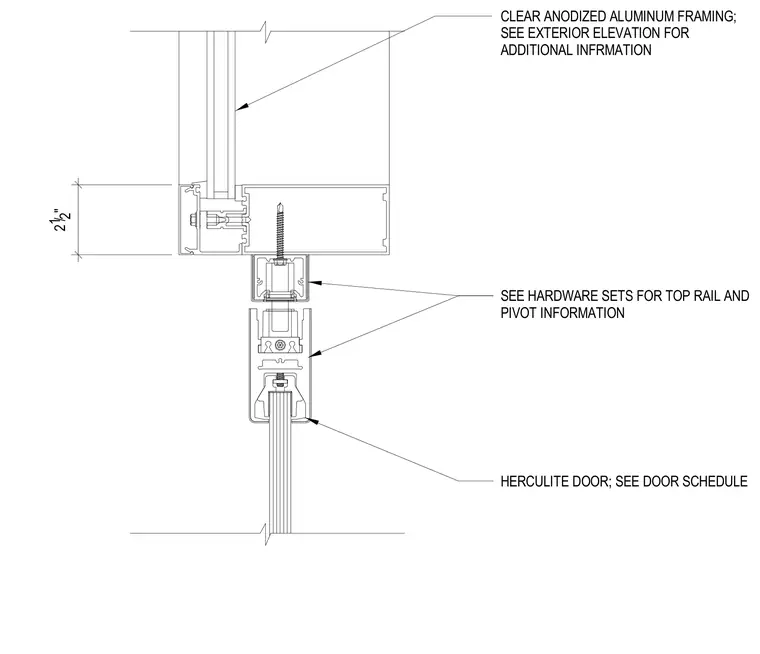

Head condition for a 2 1/2-inch Herculite door installed within clear anodized aluminum framing. The top pivot and rail assembly connect to the overhead aluminum header section with mechanical fasteners per the hardware schedule. Glazing and surrounding framing details are coordinated with the exterior elevations.
21/2" HERCULITE DOOR; SEE DOOR SCHEDULE SEE HARDWARE SETS FOR TOP RAIL AND PIVOT INFORMATION CLEAR ANODIZED ALUMINUM FRAMING; SEE EXTERIOR ELEVATION FOR ADDITIONAL INFRMATION
