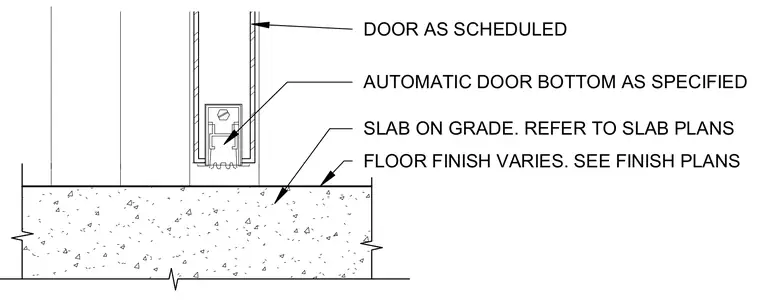

The door panel meets a concrete slab on grade at the sill with variable floor finishes keyed to the finish plans. An automatic door bottom is housed within the door as specified. The concrete slab on grade is constructed per the structural slab plans.
DOOR AS SCHEDULED AUTOMATIC DOOR BOTTOM AS SPECIFIED SLAB ON GRADE. REFER TO SLAB PLANS FLOOR FINISH VARIES. SEE FINISH PLANS
