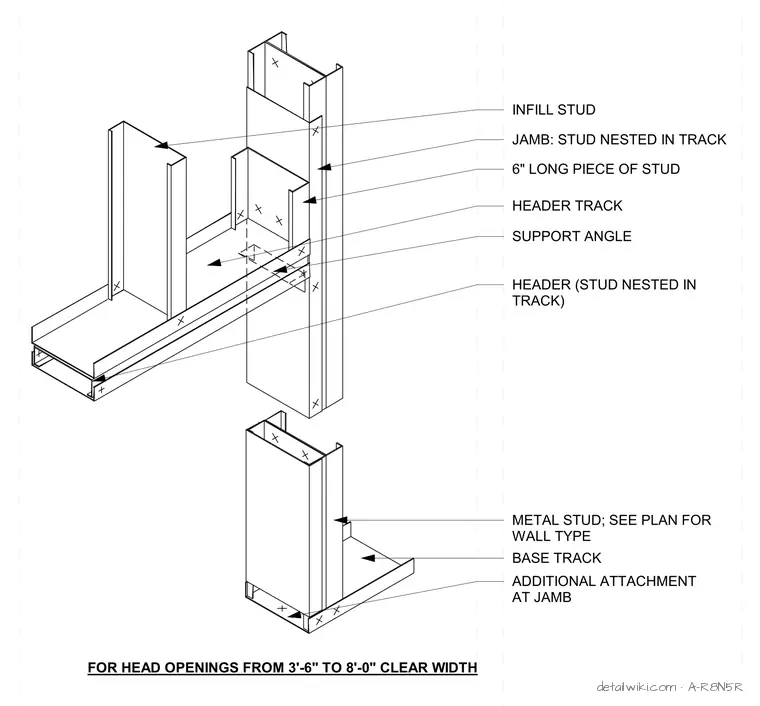

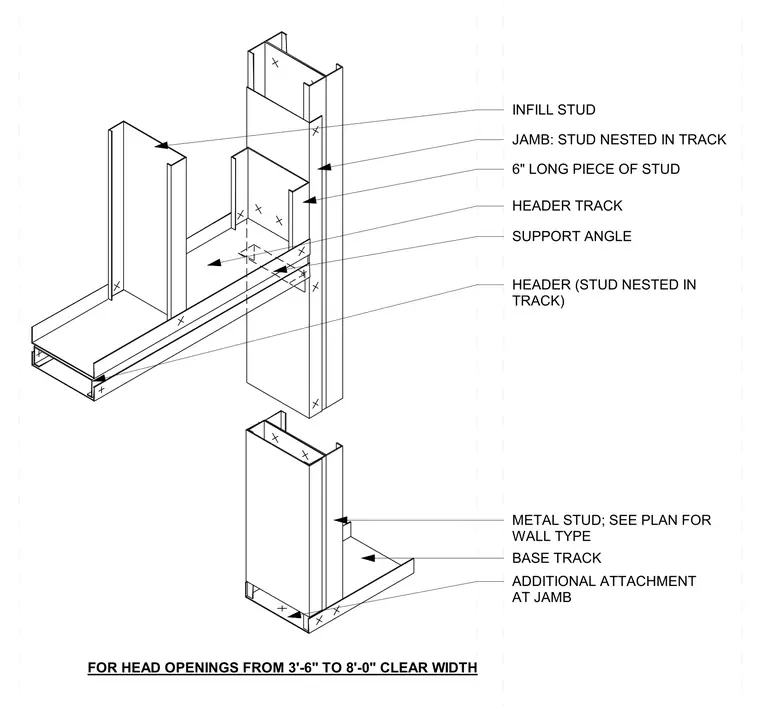

The cold-formed steel header consists of a stud nested inside a track, supported at the jamb by a support angle and a six-inch long piece of stud. Infill studs frame into the assembly, while base tracks anchor the vertical members at the jamb base. Additional attachment is provided at the jamb base track for head openings ranging from three feet six inches to eight feet zero inches in clear width. Wall types for the metal studs are sized per plan.
FOR HEAD OPENINGS FROM 3'-6" TO 8'-0" CLEAR WIDTH ADDITIONAL ATTACHMENT AT JAMB BASE TRACK METAL STUD; SEE PLAN FOR WALL TYPE HEADER (STUD NESTED IN TRACK) 6" LONG PIECE OF STUD JAMB: STUD NESTED IN TRACK INFILL STUD SUPPORT ANGLE HEADER TRACK
