Architectural · A-R8M4T

Expansion Detail A

Units: imperial
Sheet: A-580
Discipline: Architectural

Materials

Gypsum / Drywall

Elements

Ceilings Expansion / Control Joints

Connections

Expansion / Slip Connection

Text on the drawing

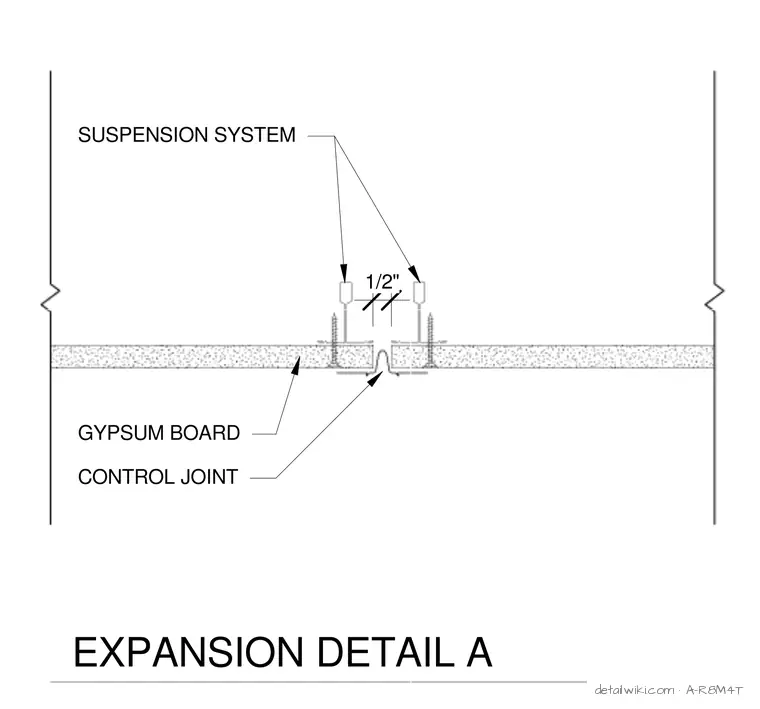

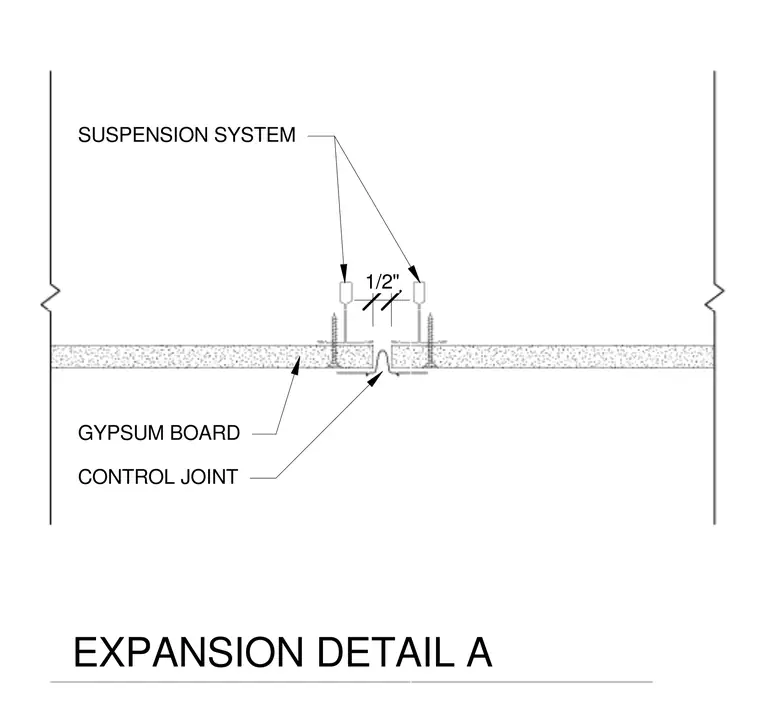

1/2" EXPANSION DETAIL A SUSPENSION SYSTEM GYPSUM BOARD CONTROL JOINT
