A cold-formed steel stud connects to a bottom track with an end clip of size and gauge as required. The track is anchored to a concrete deck using powder-actuated fasteners spaced sixteen inches on center along with additional fasteners as required. The end clip is welded or fastened to the stud and track web per structural specifications.

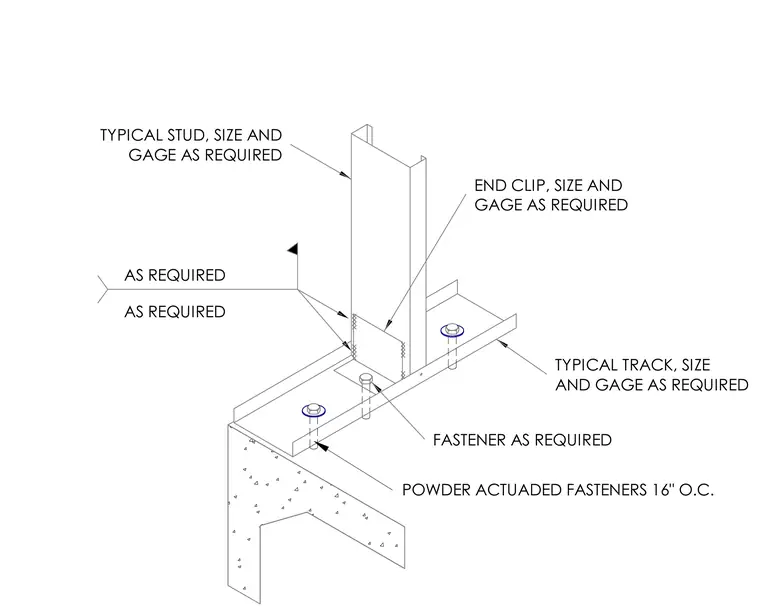

AS REQUIRED AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED END CLIP, SIZE AND GAGE AS REQUIRED TYPICAL TRACK, SIZE AND GAGE AS REQUIRED FASTENER AS REQUIRED POWDER ACTUADED FASTENERS 16" O.C. >
