A metal stud bottom track is anchored to the concrete floor slab with power-driven fasteners spaced at a maximum of sixteen inches on center per evaluation report ICC-ESR-1752. Acoustical sealant is applied beneath the bottom track along the concrete interface. Gypsum wallboard panels are fastened to the framing using typical number ten screws. A one-half-inch wall base is installed at the lower finish edge where scheduled.

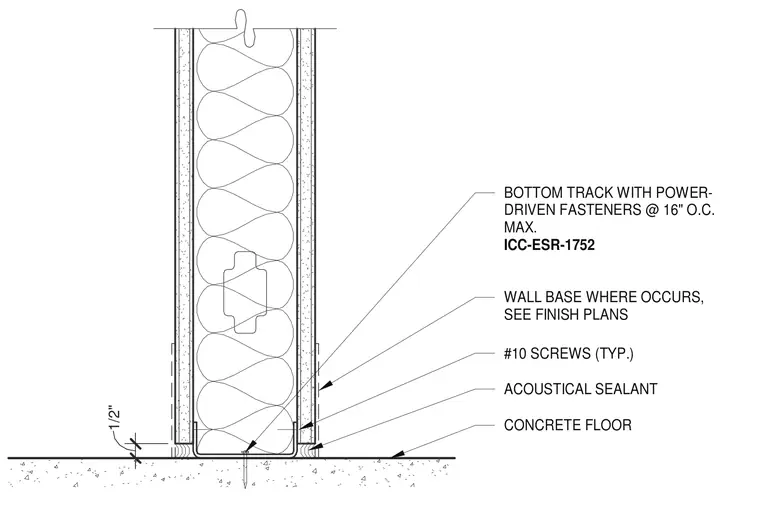

BOTTOM TRACK WITH POWER- DRIVEN FASTENERS @ 16" O.C. MAX. ICC-ESR-1752 CONCRETE FLOOR #10 SCREWS (TYP.) ACOUSTICAL SEALANT 1/2" WALL BASE WHERE OCCURS, SEE FINISH PLANS
