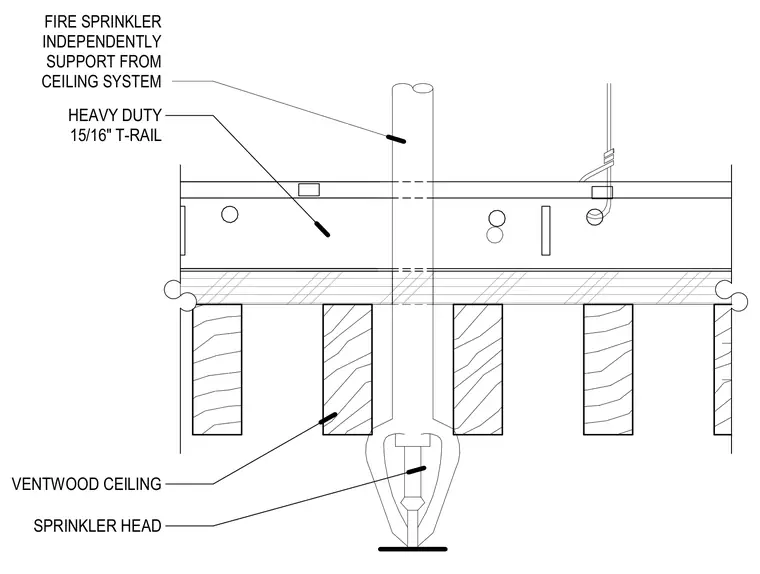

A fire sprinkler head penetrates a Ventwood wood slat ceiling system suspended from a heavy-duty fifteen-sixteenths-inch T-rail grid. The sprinkler drop pipe passes through the ceiling assembly and must be independently supported from the building structure rather than the ceiling system itself.
HEAVY DUTY 15/16" T-RAIL VENTWOOD CEILING SPRINKLER HEAD FIRE SPRINKLER INDEPENDENTLY SUPPORT FROM CEILING SYSTEM
