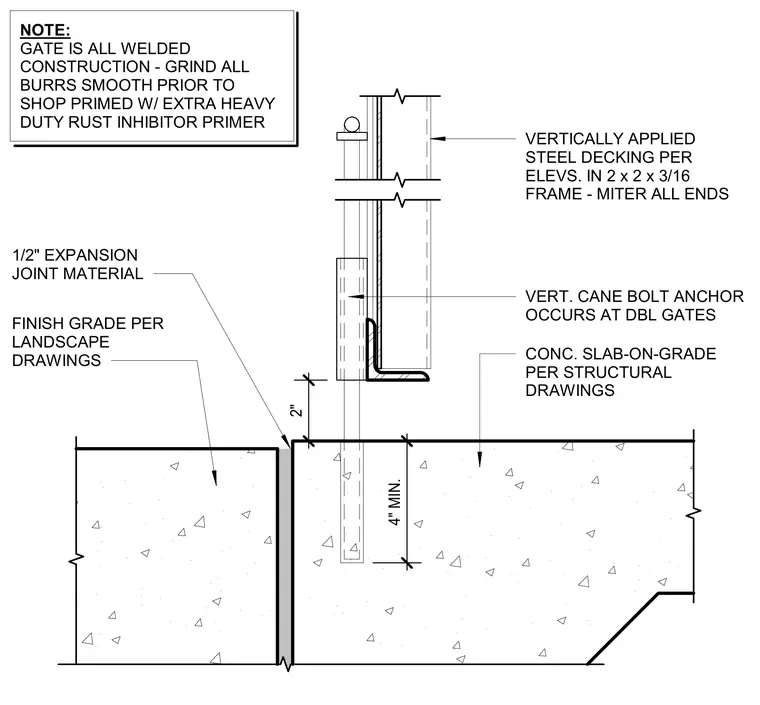

A trash enclosure gate sill interfaces with a concrete slab-on-grade separated by a one-half-inch expansion joint material. The gate features vertically applied steel decking mounted within a two-by-two-by-three-sixteenths-inch steel frame with mitered ends, and includes a vertical cane bolt anchor at double gates. All construction is fully welded with burrs ground smooth prior to receiving a shop-applied extra heavy duty rust inhibitor primer. Finish grade is established per landscape drawings adjacent to the concrete slab.
VERTICALLY APPLIED STEEL DECKING PER ELEVS. IN 2 x 2 x 3/16 FRAME - MITER ALL ENDS VERT. CANE BOLT ANCHOR OCCURS AT DBL GATES CONC. SLAB-ON-GRADE PER STRUCTURAL DRAWINGS 1/2" EXPANSION JOINT MATERIAL FINISH GRADE PER LANDSCAPE DRAWINGS 2" 4" MIN. NOTE: GATE IS ALL WELDED CONSTRUCTION - GRIND ALL BURRS SMOOTH PRIOR TO SHOP PRIMED W/ EXTRA HEAVY DUTY RUST INHIBITOR PRIMER
