Pot Sink Compartment

Materials

Steel Stainless Steel

Elements

Drainage Connections / Plates

Connections

Gusset Plate

About this detail

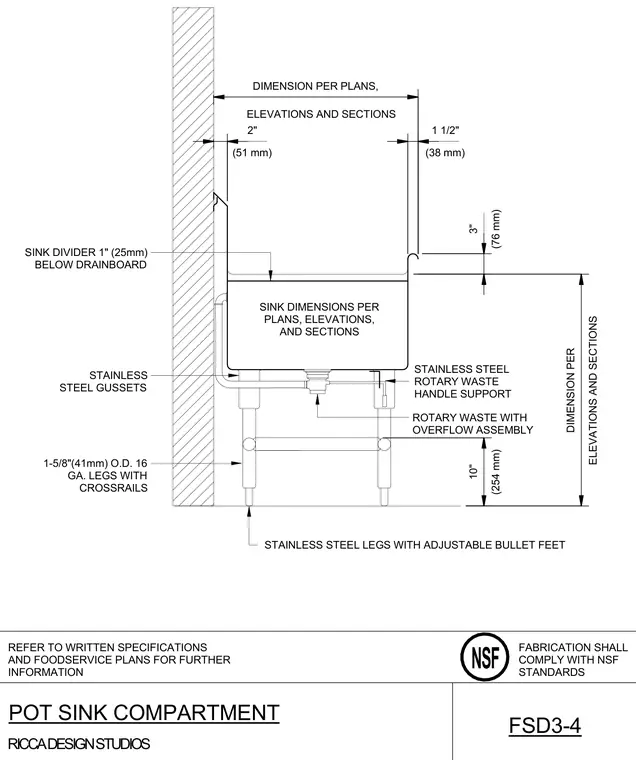

Stainless steel pot sink compartment with dimensions per plans, elevations, and sections, featuring a sink divider set 1 inch (25 millimeters) below the drainboard. The assembly is supported by stainless steel gussets and 1-5/8 inch (41 millimeter) outside diameter 16 gauge stainless steel legs with crossrails and adjustable bullet feet. A rotary waste with overflow assembly and stainless steel rotary waste handle support are integrated underneath. Fabrication complies with National Sanitation Foundation standards.
