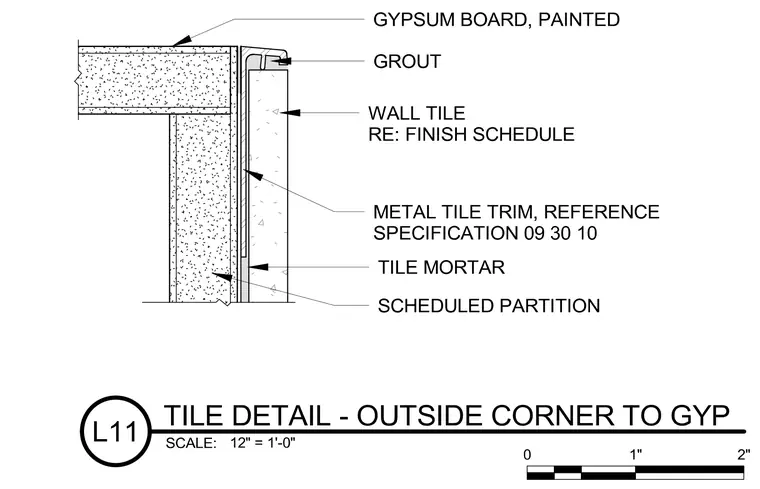

An outside corner tile transition meets a painted gypsum board ceiling and partition. The assembly includes a scheduled partition faced with tile mortar, wall tile, and grout, edged with a metal tile trim referenced to specification 09 30 10. The adjacent ceiling consists of painted gypsum board abutting the metal trim.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
