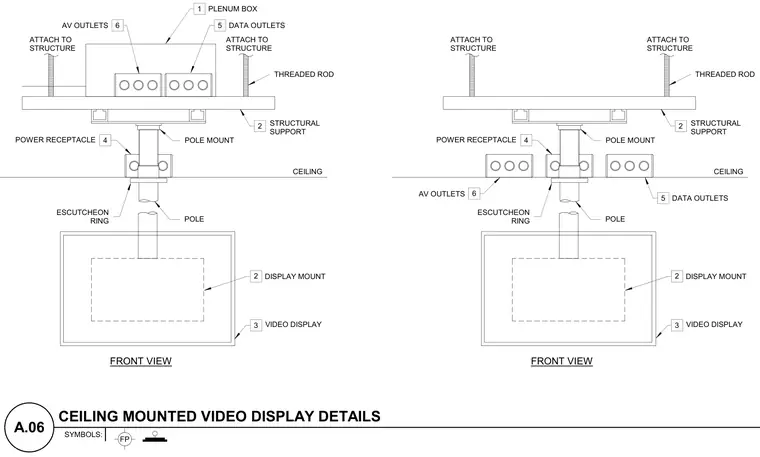

The assembly hangs from the overhead structure using threaded rods attached to structural support framing. A vertical pole mount drops down through the finished ceiling plane, finished with an escutcheon ring at the ceiling line. The lower end of the pole connects to a display mount supporting the video display unit. Nearby power receptacles, audio-visual outlets, and data outlets are positioned adjacent to the support pole or housed within a plenum box.
ATTACH TO STRUCTURE CEILING POLE ESCUTCHEON RING VIDEO DISPLAY POLE MOUNT STRUCTURAL SUPPORT AV OUTLETS DATA OUTLETS POWER RECEPTACLE FRONT VIEW ATTACH TO STRUCTURE 4 5 6 CEILING MOUNTED VIDEO DISPLAY DETAILS SYMBOLS: A.06 3 2 ATTACH TO STRUCTURE CEILING POLE ESCUTCHEON RING VIDEO DISPLAY POLE MOUNT STRUCTURAL SUPPORT AV OUTLETS DATA OUTLETS THREADED ROD POWER RECEPTACLE FRONT VIEW ATTACH TO STRUCTURE 4 5 6 3 2 THREADED ROD 1 PLENUM BOX FP DISPLAY MOUNT 2 DISPLAY MOUNT 2
