Architectural · A-R6T8M

Handrail @ Ramp

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Ramps Railings / Guards Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Welded Connection

About this detail

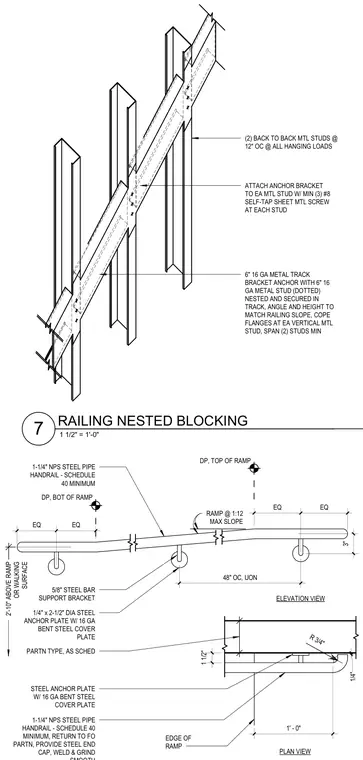

A one-and-one-quarter-inch nominal pipe size steel pipe handrail of schedule forty minimum anchors along a ramp at a one-in-twelve maximum slope. The handrail mounts to five-eighths-inch steel bar support brackets welded to a quarter-inch by two-and-one-half-inch diameter steel anchor plate with a sixteen-gauge bent steel cover plate. The assembly attaches to two back-to-back metal studs spaced at twelve inches on center using a minimum of three number eight self-tapping sheet metal screws at each stud. A six-inch sixteen-gauge metal track bracket anchor nests with a six-inch sixteen-gauge metal stud, with flanges coped at each vertical metal stud spanning a minimum of two studs.
