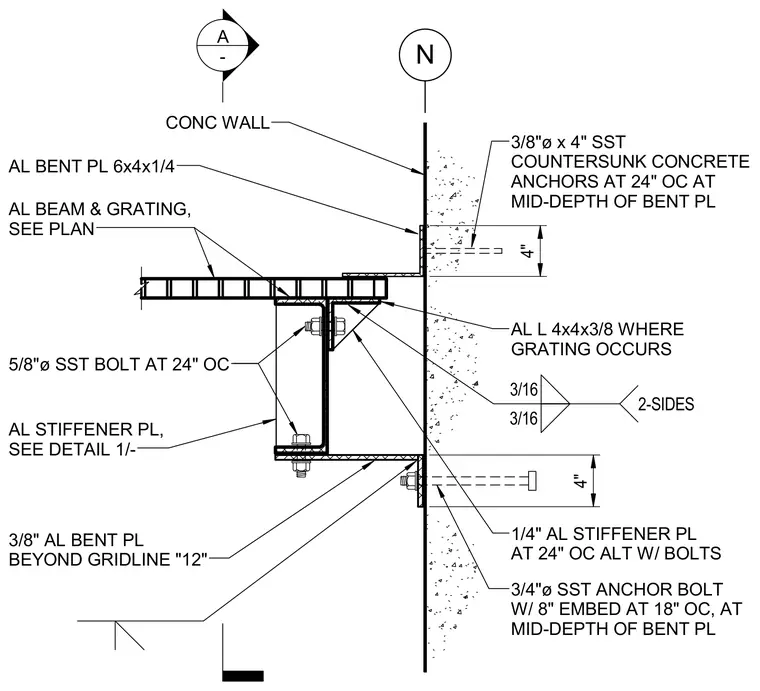

An aluminum beam and grating assembly is anchored to a concrete wall using 6x4x1/4-inch aluminum bent plates secured with three-quarter-inch diameter stainless steel anchor bolts with eight-inch embedment at 18 inches on center, alongside 3/8-inch diameter by 4-inch stainless steel countersunk concrete anchors at 24 inches on center. The aluminum beam supports an aluminum grating and connects via an aluminum angle 4x4x3/8-inch where grating occurs. Aluminum stiffener plates are spaced at 24 inches on center, alternating with 5/8-inch diameter stainless steel bolts at 24 inches on center. Fillet welds of 3/16-inch size are applied on two sides as indicated.
CONC WALL AL BEAM & GRATING, SEE PLAN 5/8"ø SST BOLT AT 24" OC AL L 4x4x3/8 WHERE GRATING OCCURS 1/4" AL STIFFENER PL AT 24" OC ALT W/ BOLTS 3/16 3/16 2-SIDES N 3/4"ø SST ANCHOR BOLT W/ 8" EMBED AT 18" OC, AT MID-DEPTH OF BENT PL AL STIFFENER PL, SEE DETAIL 1/- 3/8" AL BENT PL BEYOND GRIDLINE "12" AL BENT PL 6x4x1/4 4" 4" 3/8"ø x 4" SST COUNTERSUNK CONCRETE ANCHORS AT 24" OC AT MID-DEPTH OF BENT PL A -
