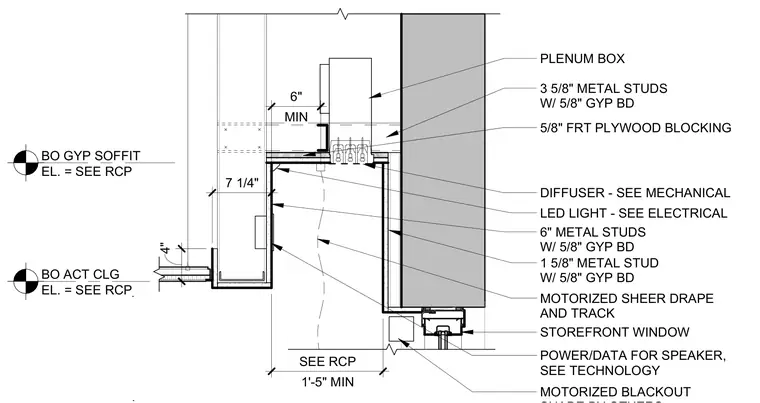

A motorized sheer drape and track assembly is housed within a recessed pocket adjacent to a storefront window. The pocket is framed with three-and-five-eighths-inch and six-inch metal studs finished with five-eighths-inch gypsum board and five-eighths-inch fire-retardant-treated plywood blocking. A plenum box sits above the track assembly, while an integrated diffuser and LED light fixture are coordinated with mechanical and electrical plans. A motorized blackout shade is positioned near the storefront head, and a dropped acoustic ceiling tile system transitions away from the pocket.
BO ACT CLG EL. = SEE RCP BO GYP SOFFIT EL. = SEE RCP PLENUM BOX 3 5/8" METAL STUDS W/ 5/8" GYP BD 4" MOTORIZED SHEER DRAPE AND TRACK DIFFUSER - SEE MECHANICAL LED LIGHT - SEE ELECTRICAL STOREFRONT WINDOW 1'-5" MIN SEE RCP 1 5/8" METAL STUD W/ 5/8" GYP BD MIN 6" MOTORIZED BLACKOUT 5/8" FRT PLYWOOD BLOCKING POWER/DATA FOR SPEAKER, SEE TECHNOLOGY 7 1/4" 6" METAL STUDS W/ 5/8" GYP BD
