Architectural · A-R6H4Q

Curved Wall Assembly with Storefront and Awning Section

Materials

Concrete Steel Cold-formed Steel Timber / Wood Masonry / CMU Brick Aluminum Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Windows Storefronts Facades / Cladding Roofs Canopies Floors / Slabs Waterproofing / Flashing Insulation Site / Paving Connections / Plates Roof / Floor Openings

About this detail

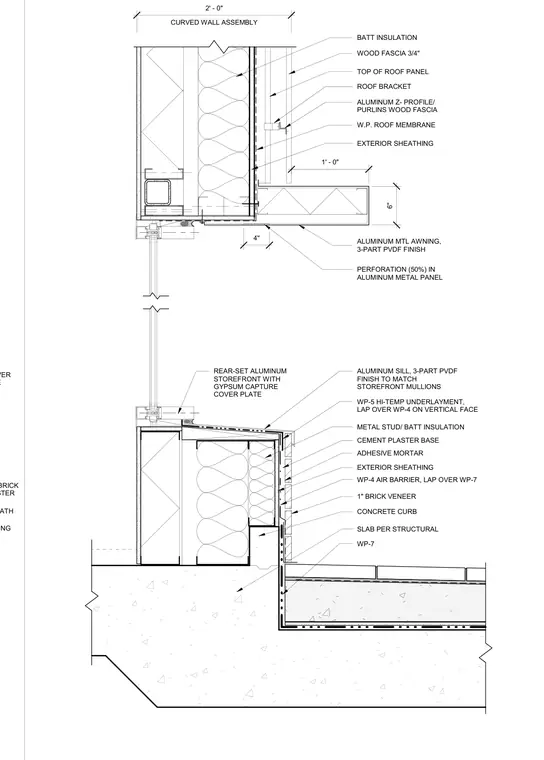

This wall section details a curved assembly transitioning from a roof panel with a wood fascia down to a storefront head and a concrete curb base. The roof assembly incorporates a waterproof membrane, high-temperature underlayment, batt insulation, exterior sheathing, and an aluminum metal awning with a fifty percent perforation finish. The vertical wall utilizes metal studs, exterior sheathing, adhesive mortar, and a one-inch brick veneer or cement plaster base over a drainage mat and WP-4 air barrier. A rear-set aluminum storefront with a gypsum capture cover plate meets the lower roof transition, featuring an aluminum sill with a three-part PVDF finish matching the storefront mullions. Waterproofing details include overlapping membranes designated as WP-4, WP-5, and WP-7 at vertical faces and flashings.
