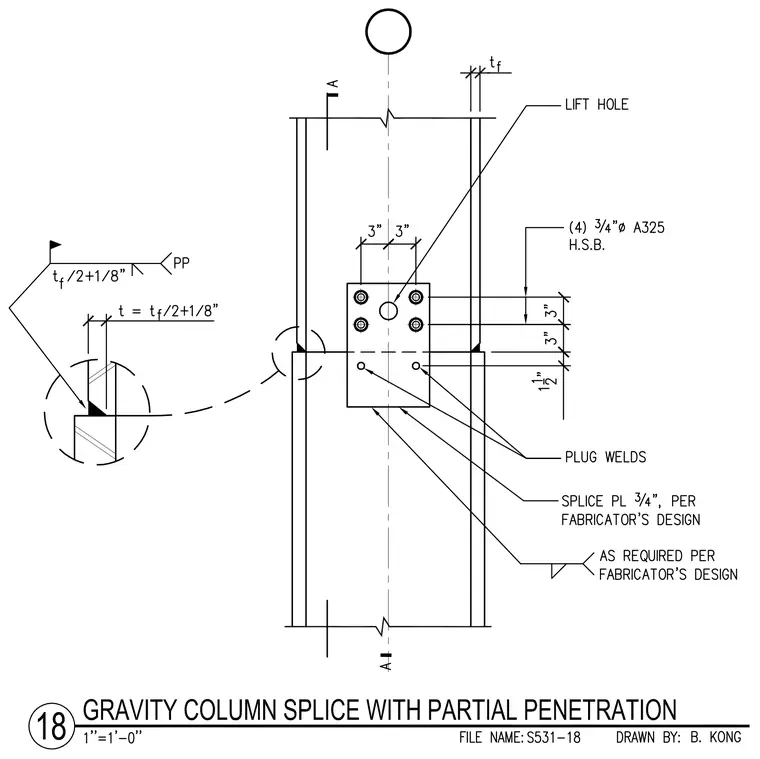

Two aligned structural steel columns connect via a three-quarter-inch splice plate fastened with four three-quarter-inch-diameter A325 high-strength bolts and two plug welds. The column flanges feature partial-penetration welds with a size of tf divided by two plus one-eighth inch. An enlarged callout detail shows the precise fit-up and weld root dimensions between the upper and lower column segments. A central lift hole is provided on the splice plate for erection positioning.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
