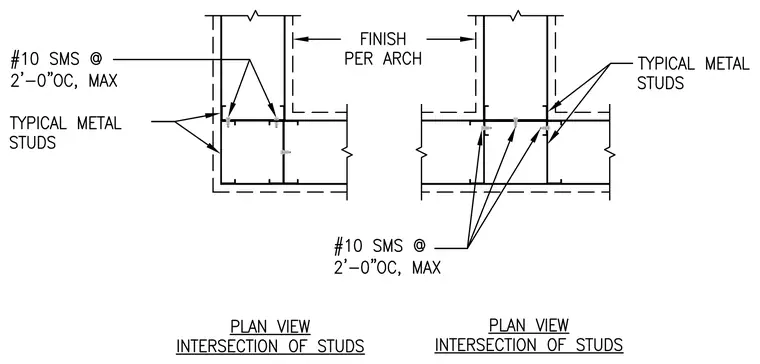

Typical metal studs frame an intersecting partition wall connection using number ten sheet metal screws spaced at two feet zero inches on center maximum. Finish materials are provided per architectural specifications.
