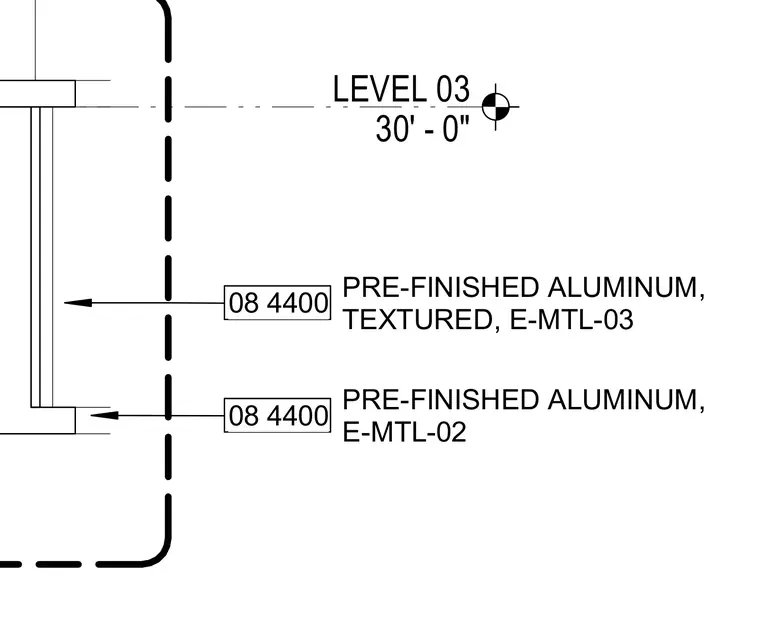

The storefront system is anchored at level 03, positioned at an elevation of thirty feet. The assembly incorporates pre-finished textured aluminum designated as material E-MTL-03, along with secondary pre-finished aluminum elements designated as E-MTL-02. All materials are specified under section 08 4400 for glazed aluminum curtain walls and storefronts.
LEVEL 03 30' - 0" 08 4400 PRE-FINISHED ALUMINUM, TEXTURED, E-MTL-03 08 4400 PRE-FINISHED ALUMINUM, E-MTL-02
