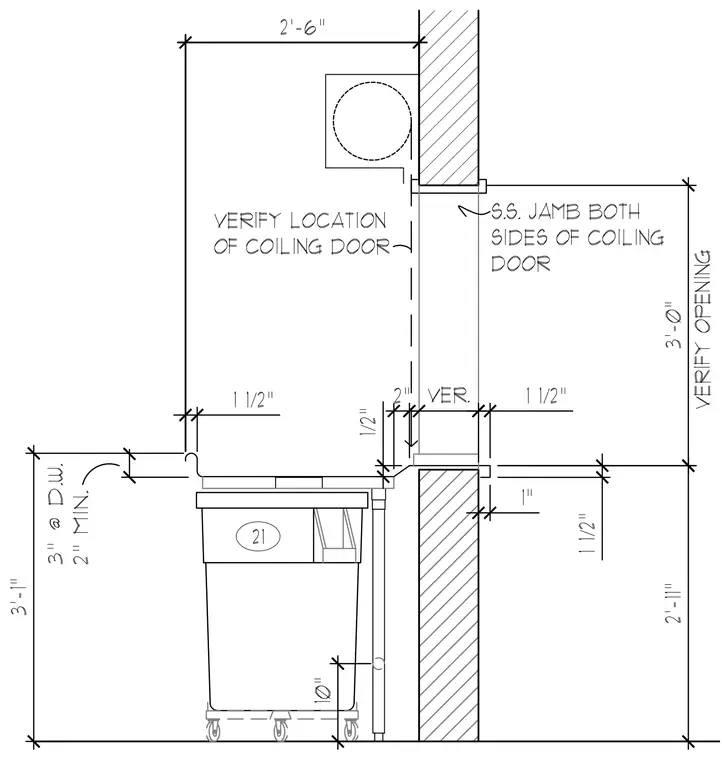

This architectural section details a coiling door installation adjacent to a trash enclosure. Stainless steel jambs line both sides of the coiling door opening, which has a verified opening height of three feet. A specialized work surface or counter projects from the wall above a rolling trash bin, with vertical clearances dimensioned at two feet eleven inches to the underside and three inches minimum at the drain waste. The coiling door barrel location is verified overhead, maintaining a two-foot-six-inch projection from the face of the wall.
