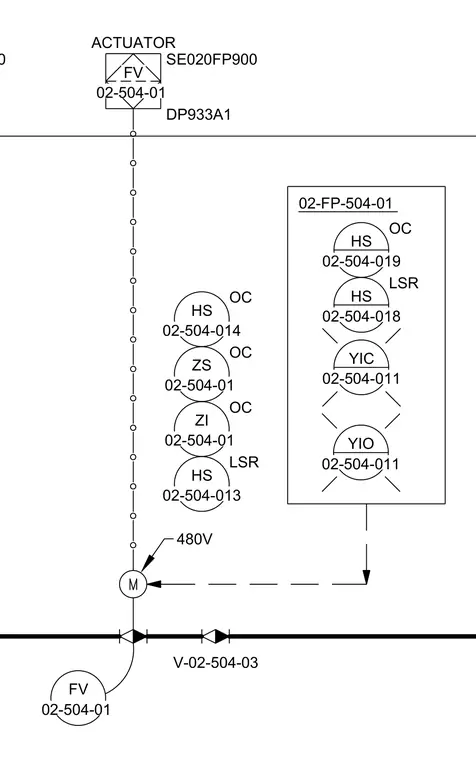

An electric valve actuator with model tag SE020FP900 is controlled via a 480V motor connection. Interconnected control switches, limit switches, and position indicators including tags HS 02-504-014, ZS 02-504-01, ZI 02-504-01, and HS 02-504-013 provide feedback signals. Additional auxiliary control loops and relay modules manage open and closed statuses. The valve assembly V-02-504-03 integrates directly with the motorized actuator control scheme.
FV V-02-504-03 SE020FP900 FV ACTUATOR DP933A1 SE020FP900 HS 02-504-013 LSR ZI OC ZS OC HS 02-504-014 OC 480V YIO 02-504-011 YIC 02-504-011 HS 02-504-019 OC HS 02-504-018 LSR )3
