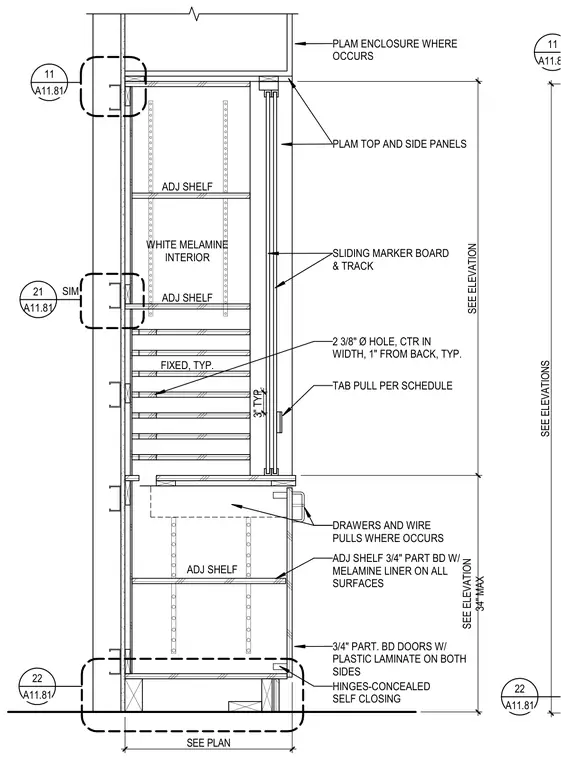

This teaching wall casework assembly features top and side panels surfaced with plastic laminate and encloses a white melamine interior. Adjustable and fixed shelves constructed from three-quarter-inch particle board with melamine liners are supported by standard shelf standards. The unit integrates a sliding marker board and track assembly, along with drawers and wire pulls where scheduled. Lower cabinet doors utilize three-quarter-inch particle board with plastic laminate on both sides and are hung on concealed self-closing hinges. Cable management is accommodated by two-and-three-eighths-inch diameter holes centered in width and set one inch from the back.
DRAWERS AND WIRE PULLS WHERE OCCURS PLAM TOP AND SIDE PANELS ADJ SHELF 3/4" PART BD W/ MELAMINE LINER ON ALL SURFACES TAB PULL PER SCHEDULE A11.81 22 3/4" PART. BD DOORS W/ PLASTIC LAMINATE ON BOTH SIDES HINGES-CONCEALED SELF CLOSING A11.81 21 SIM A11.81 11 PLAM ENCLOSURE WHERE OCCURS SLIDING MARKER BOARD & TRACK SEE PLAN SEE ELEVATION 34" MAX SEE ELEVATION 2 3/8" Ø HOLE, CTR IN WIDTH, 1" FROM BACK, TYP. 3" TYP. ADJ SHELF ADJ SHELF WHITE MELAMINE INTERIOR ADJ SHELF FIXED, TYP. SEE ELEVATIONS A11.81 11 A11.81 22
