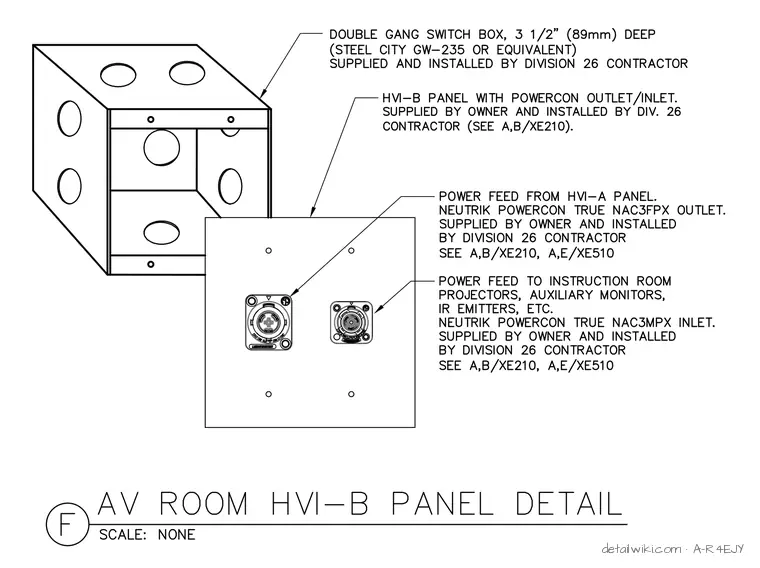

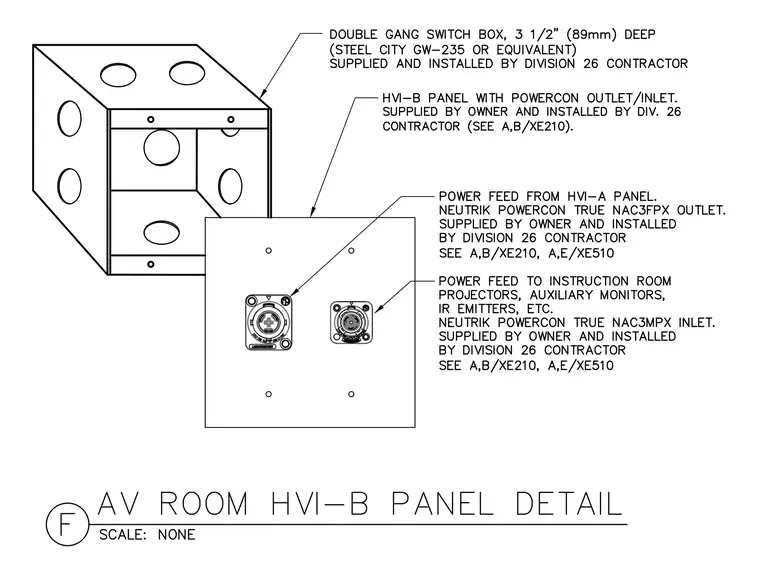

An HVI-B panel housing powercon outlets and inlets is mounted to a double-gang electrical switch box measuring three and one-half inches deep. The enclosure receives a power feed from an HVI-A panel via a Neutrik powercon true outlet and routes power feeds to instruction room projectors and auxiliary monitors through a Neutrik powercon true inlet. All components are supplied by the owner and installed by the electrical contractor.
