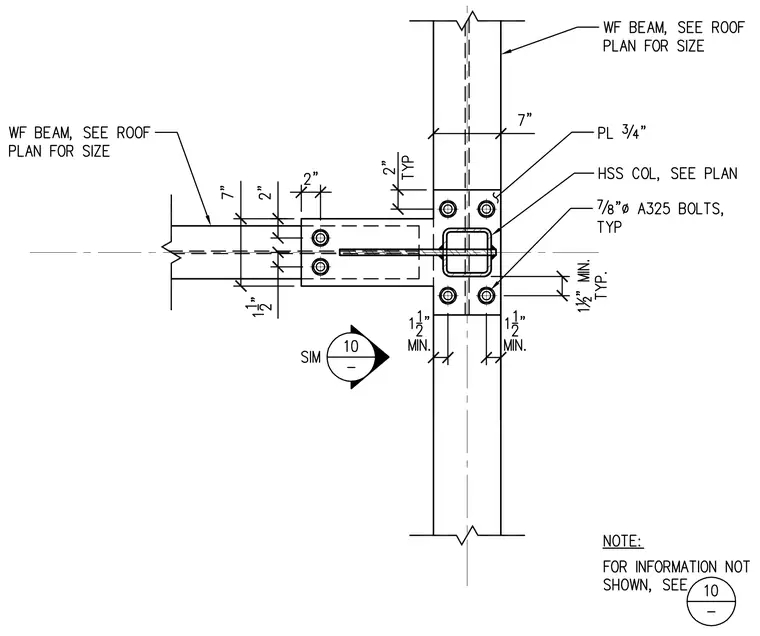

A wide-flange beam connects to a hollow structural section column sized per plan using a three-quarter-inch plate and seven-eighth-inch diameter A325 bolts. The horizontal beam framing connects with paired bolts spaced with typical dimensions of two inches and seven inches. Additional information is referenced to detail ten.
