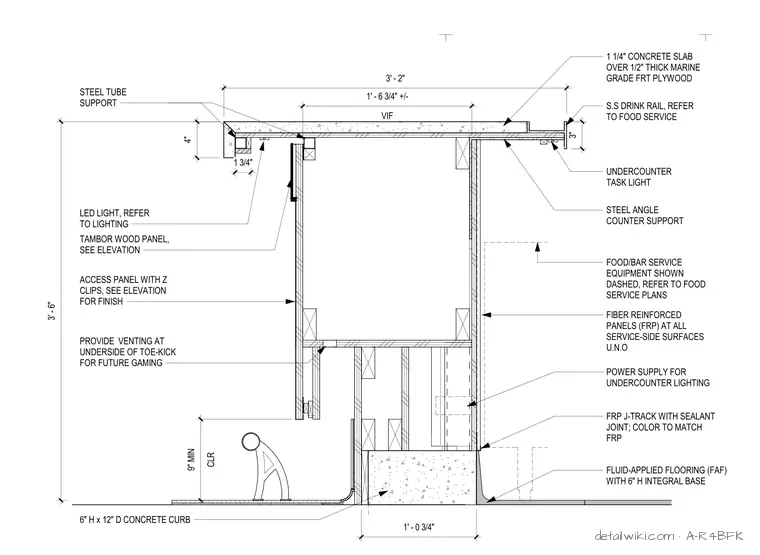

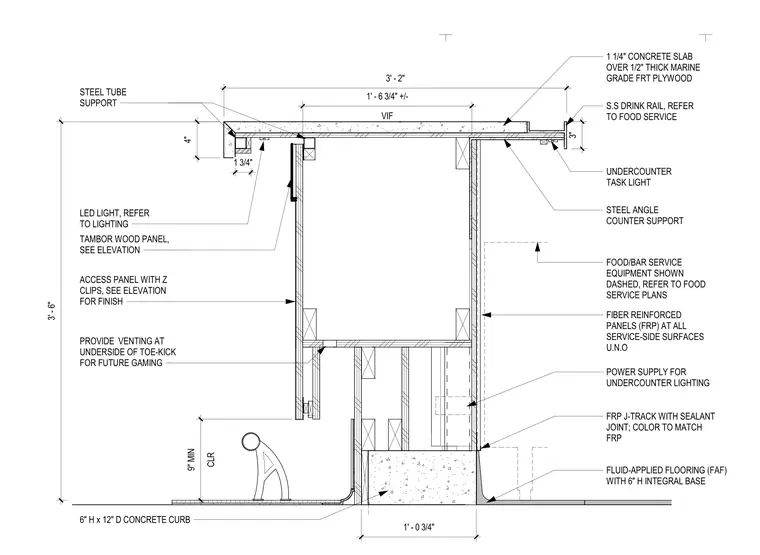

This counter assembly features a 1 1/4-inch concrete slab top over 1/2-inch thick marine-grade fire-retardant treated plywood, supported by a steel angle counter support and a steel tube support at the front edge. The front face is finished with tambor wood panels and an access panel secured with Z-clips, while the service side is clad in fiber-reinforced panels with J-track and sealant joints. The counter sits on a 6-inch by 12-inch concrete curb with a fluid-applied flooring system that includes a 6-inch integral base. Integrated components include an undercounter task light, power supply for lighting, and a stainless steel drink rail. The assembly provides a 9-inch clear space at the toe-kick, which includes venting for future gaming equipment.
