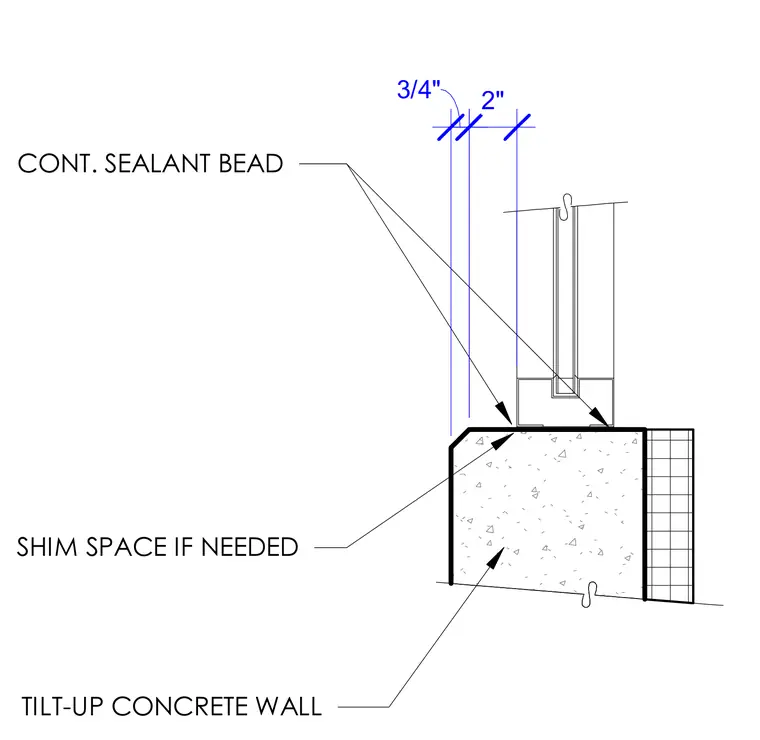

An overhead door head frame bears upon a tilt-up concrete wall with a two-inch and three-quarter-inch dimensioned shim space provided as needed. A continuous sealant bead seals the joint between the door frame and the concrete substrate.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD 3/4" 2" SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD 3/4" 2"
