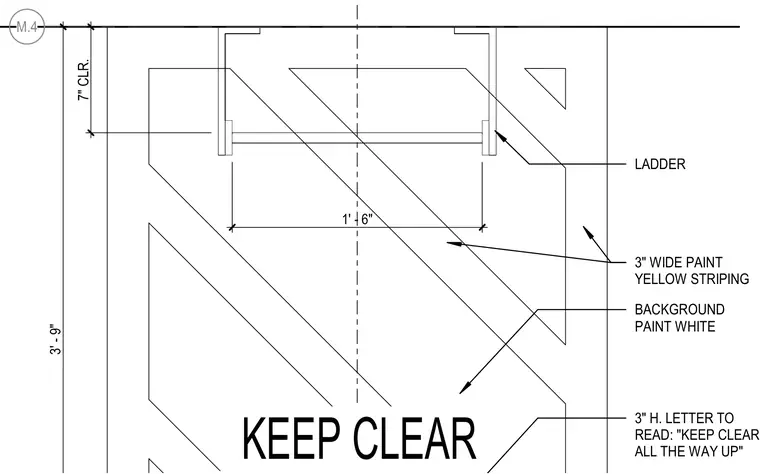

This plan detail specifies floor markings for maintaining a ladder clearance zone. A white background paint field receives three-inch wide yellow striping and three-inch high lettering reading "KEEP CLEAR ALL THE WAY UP". The ladder is positioned with a one-foot six-inch width and a seven-inch clearance.
M.4 KEEP CLEAR BACKGROUND PAINT WHITE 3" WIDE PAINT YELLOW STRIPING 3" H. LETTER TO READ: "KEEP CLEAR ALL THE WAY UP" LADDER 3' - 9" 1' - 6" 7" CLR.
