Clerestory Corner Plan Detail with Living Wall Framing

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Walls Floors / Slabs Insulation

Connections

HSS Connection

About this detail

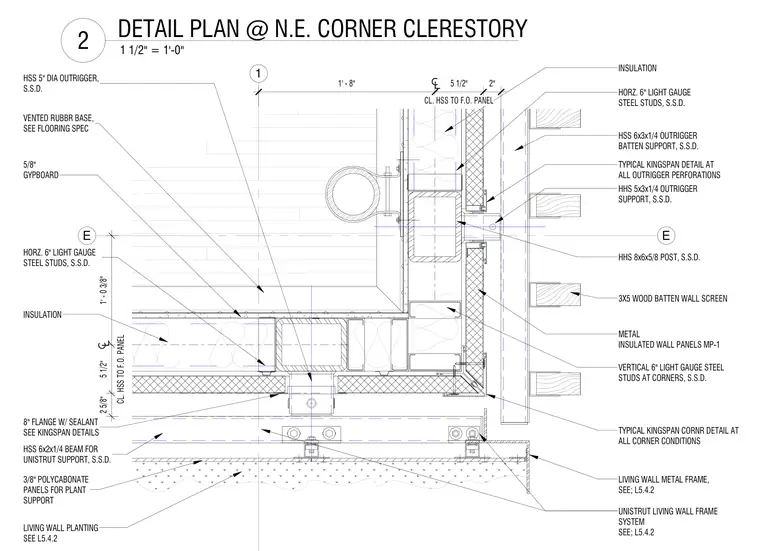

A northeastern clerestory corner assembly is constructed with an 8x6x5/8 hollow structural section corner post and horizontal and vertical 6-inch light-gauge steel studs with insulation and interior 5/8-inch gypsum board. Metal insulated wall panels interface with the framing alongside HSS 6x3x1/4 and HSS 5x3x1/4 outrigger battens and supports, an HSS 5-inch diameter outrigger, and an HSS 6x2x1/4 beam for Unistrut support. The exterior features a living wall metal frame system carrying a 3x5 wood batten wall screen and 3/8-inch polycarbonate panels for plant support. Typical Kingspan details are applied at all outrigger perforations and corner conditions, with sealant provided at the 8-inch flanges.
