Architectural · A-R3A3M

Carpet Tile and Concrete Threshold at Door Frame

Materials

Elements

About this detail

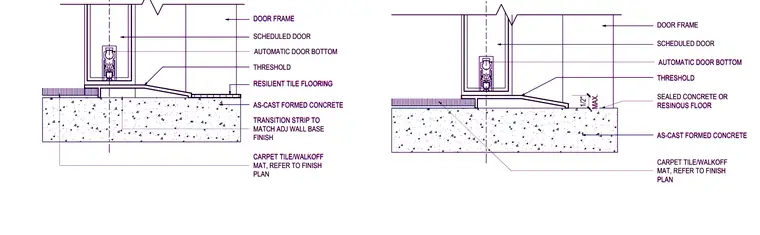

An as-cast formed concrete slab supports a scheduled door frame fitted with an automatic door bottom and a threshold. The threshold transitions to a carpet tile or walkoff mat on one side and either sealed concrete, resinous flooring, or resilient tile flooring on the opposite side. A transition strip matches the adjacent wall base finish where applicable. Maximum threshold height is limited to one-half inch above the finished floor.
