Architectural · A-R39R4

Curved Brick Veneer Wall Transition to Roof Assembly

Materials

Concrete Cold-formed Steel Timber / Wood Masonry / CMU Brick Aluminum Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Walls Facades / Cladding Roofs Decks Waterproofing / Flashing Insulation

About this detail

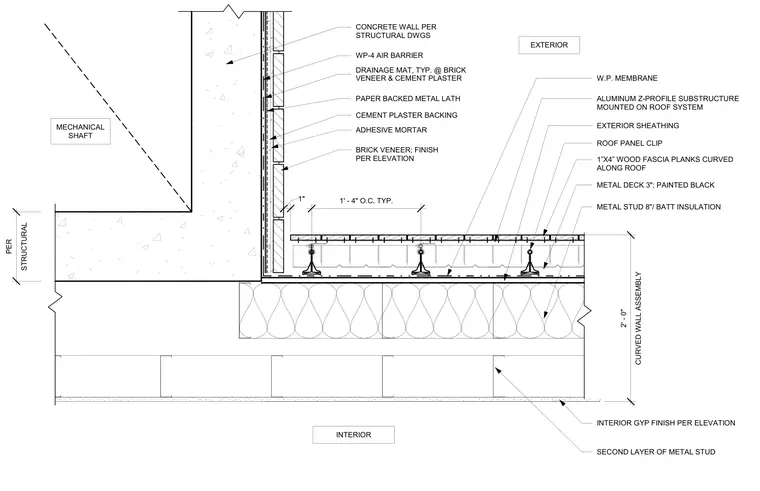

A concrete wall features a WP-4 air barrier, drainage mat, paper-backed metal lath, cement plaster backing, and adhesive mortar behind the brick veneer at its intersection with a roof assembly. The roof assembly consists of a metal deck painted black, topped with waterproofing membrane, an aluminum z-profile substructure, exterior sheathing, roof panel clips, and 1-inch by 4-inch wood fascia planks curved along the roof line. The interior features metal studs with batt insulation and an interior gypsum finish per elevation, along with a secondary layer of metal studs for the curved wall assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
