Architectural · A-R2MF6

Balcony Guardrail and Edge Detail

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Railings / Guards Balconies Ceilings Insulation

About this detail

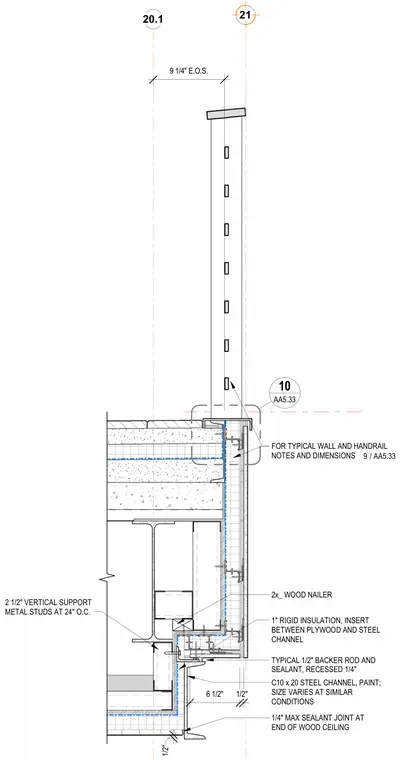

A balcony guardrail and edge assembly anchored to a painted C10x20 steel channel, with size variations per similar conditions. The vertical support utilizes two and a half inch metal studs spaced at twenty-four inches on center, backed by two-by wood nailers. One inch of rigid insulation is inserted between the plywood and the steel channel. A typical half-inch backer rod and sealant, recessed by a quarter inch, is provided alongside a quarter-inch maximum sealant joint at the end of the wood ceiling.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
