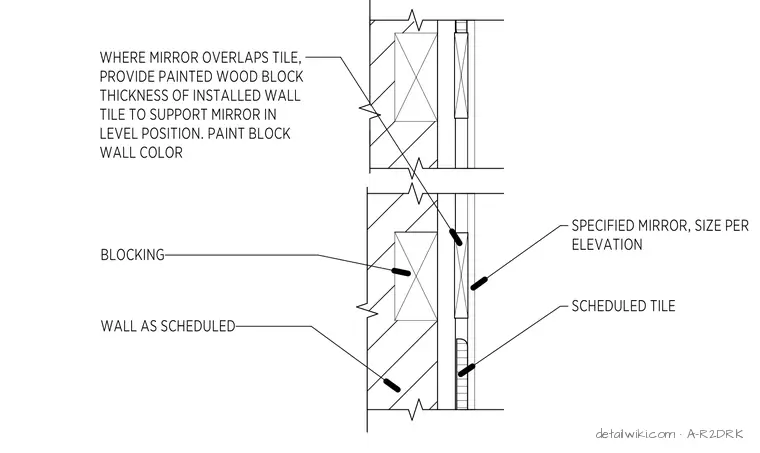

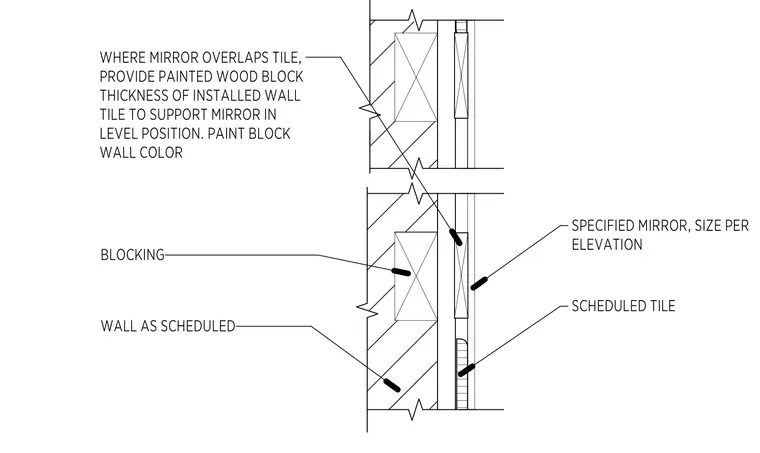

A mirror mounts over a wall finished with scheduled tile. Where the mirror overlaps the tile, a painted wood block matches the thickness of the wall tile to ensure the mirror remains in a level position. This blocking is painted to match the wall color and is secured to the wall structure as scheduled.
