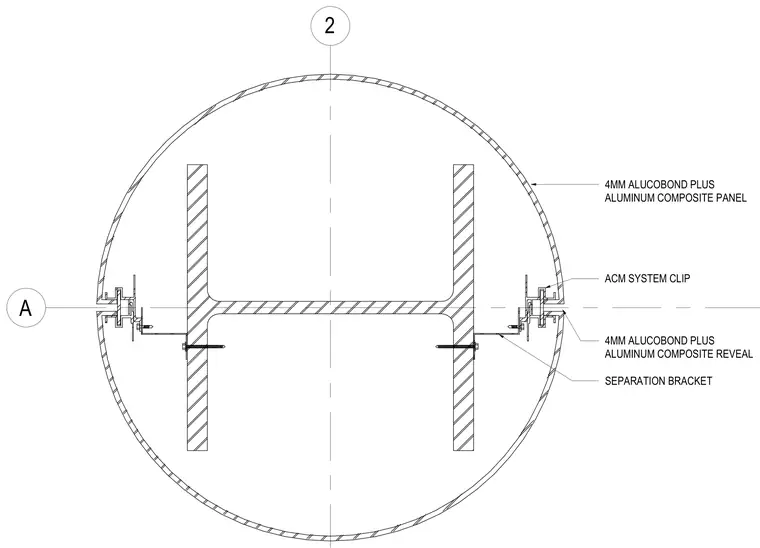

A structural steel column is wrapped with a circular four millimeter Alucobond Plus aluminum composite panel cladding system. Separation brackets anchor to the column flanges and secure the exterior panel assembly. Aluminum composite reveals and ACM system clips form the vertical joint and maintain alignment between the curved panels.
2 A SEPARATION BRACKET 4MM ALUCOBOND PLUS ALUMINUM COMPOSITE PANEL ACM SYSTEM CLIP 4MM ALUCOBOND PLUS ALUMINUM COMPOSITE REVEAL
