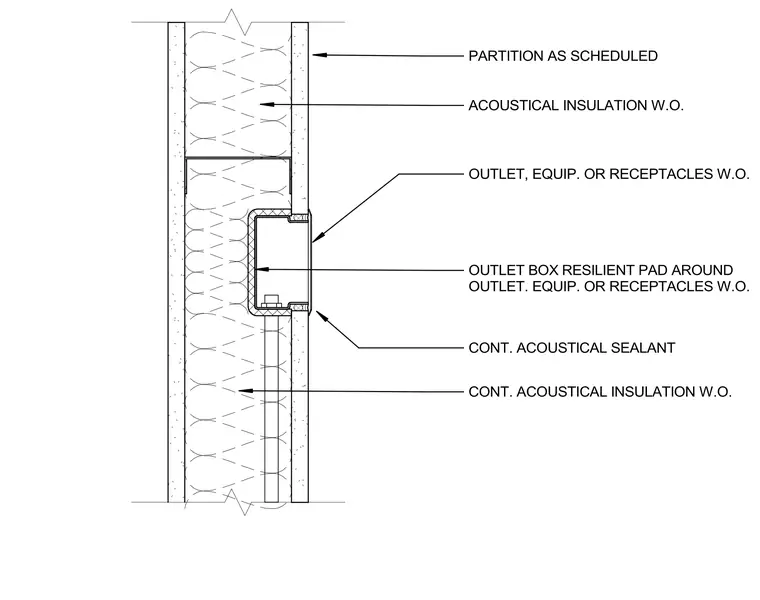

A scheduled partition assembly receives continuous acoustical insulation and continuous acoustical sealant around electrical penetrations to maintain sound ratings. An outlet box, equipment, or receptacle is installed with a resilient pad wrapped around the outlet box. Continuous acoustical insulation is packed around the assembly to preserve the acoustic integrity of the wall.
PARTITION AS SCHEDULED ACOUSTICAL INSULATION W.O. OUTLET, EQUIP. OR RECEPTACLES W.O. OUTLET BOX RESILIENT PAD AROUND OUTLET. EQUIP. OR RECEPTACLES W.O. CONT. ACOUSTICAL SEALANT CONT. ACOUSTICAL INSULATION W.O.
