Architectural · A-QZQNA

Steel Pipe Stair Railing and Baluster Assembly

Materials

Steel

Elements

Columns Stairs Railings / Guards

Connections

Welded Connection

About this detail

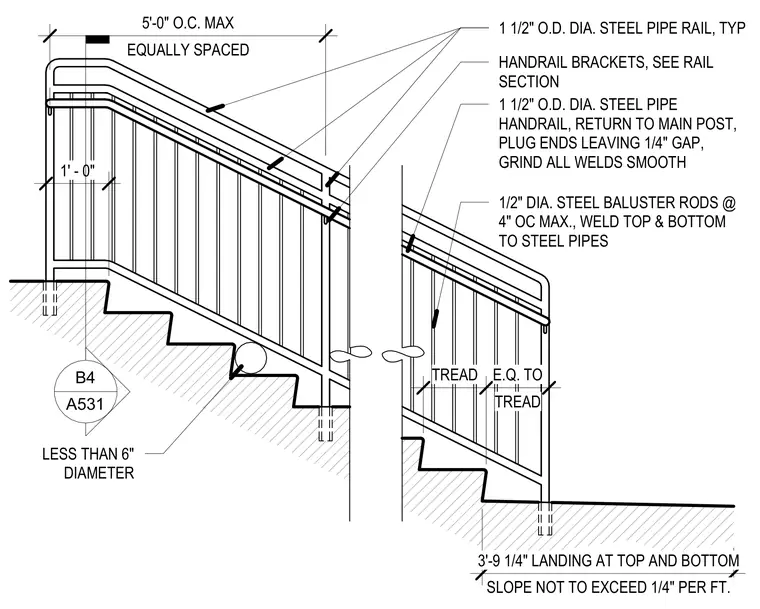

The assembly consists of a 1 1/2 inch outer diameter steel pipe rail mounted above 1/2 inch diameter steel baluster rods spaced at 4 inches maximum on center and welded top and bottom to the steel pipes. The handrail returns to the main post with plugged ends leaving a 1/4 inch gap, and all welds are ground smooth. Handrail brackets are detailed per the rail section, anchored along stair treads measuring 1 foot 0 inches with landings at top and bottom measuring 3 feet 9 1/4 inches. The maximum slope does not exceed 1/4 inch per foot with equally spaced posts at 5 feet 0 inches on center maximum.
