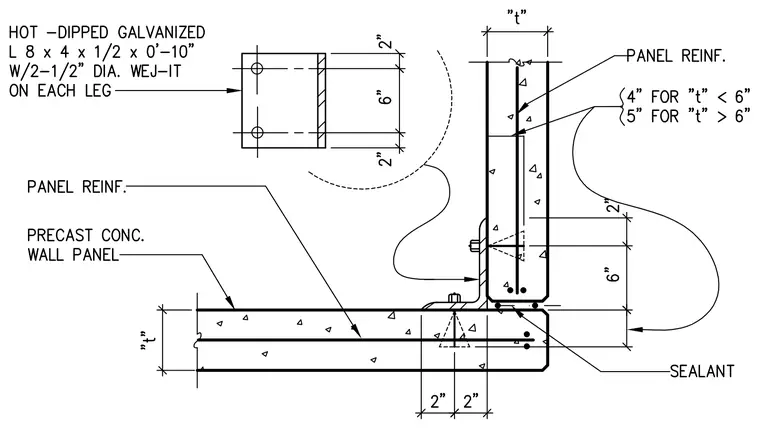

Precast concrete wall panels intersect at a right-angle corner with a joint sealed by exterior sealant. A hot-dipped galvanized angle measuring L 8 x 4 x 1/2 by 0'-10" long connects the adjacent panels. Each leg of the angle is secured with two one-half inch diameter Wej-It wedge anchors. Panel reinforcement is placed within the concrete panels, with dimensions varying depending on panel thickness "t".
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
