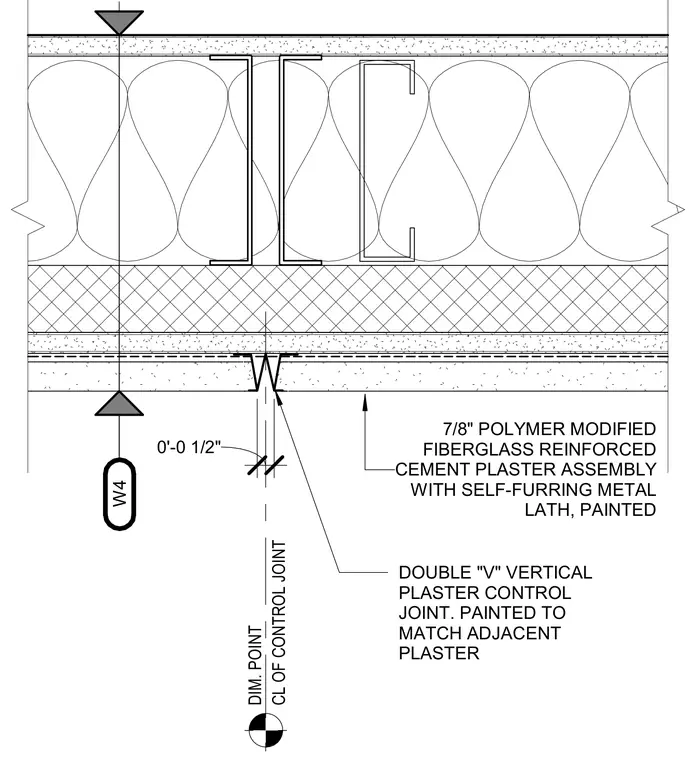

A painted double V-shaped vertical plaster control joint is centered along a dimensional control line within a seven-eighths-inch polymer-modified fiberglass-reinforced cement plaster assembly. The plaster finish incorporates self-furring metal lath backed by sheathing and steel stud framing with batt insulation. The control joint is painted to match the adjacent plaster finish.
W4 CL OF CONTROL JOINT DIM. POINT 7/8" POLYMER MODIFIED FIBERGLASS REINFORCED CEMENT PLASTER ASSEMBLY WITH SELF-FURRING METAL LATH, PAINTED DOUBLE "V" VERTICAL PLASTER CONTROL JOINT. PAINTED TO MATCH ADJACENT PLASTER 0'-0 1/2"
