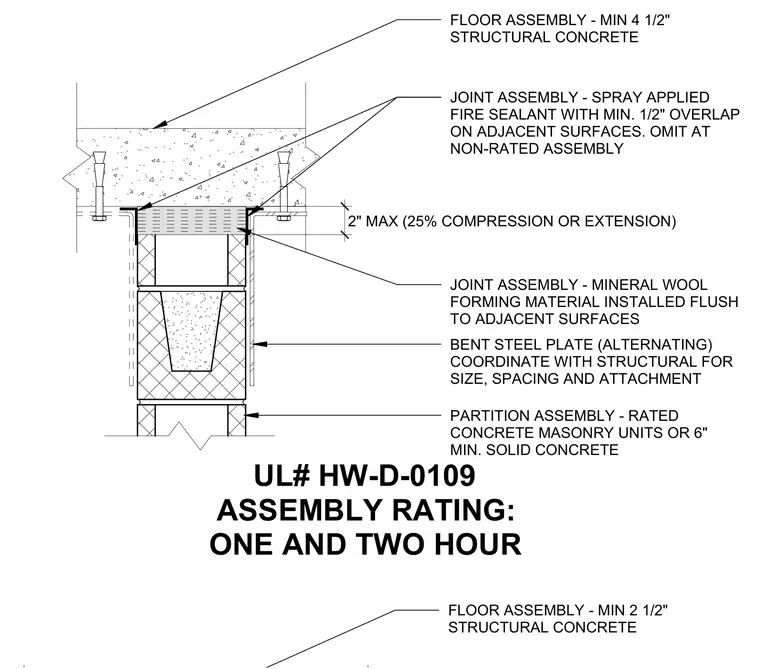

A fire-rated floor-to-wall head joint assembly designated as UL number HW-D-0109 with a one- and two-hour assembly rating. The floor assembly consists of minimum four-and-one-half-inch or minimum two-and-one-half-inch structural concrete slabs. The partition assembly is constructed of rated concrete masonry units or six-inch minimum solid concrete. A joint gap of two inches maximum allows for twenty-five percent compression or extension. Mineral wool forming material is installed flush to adjacent surfaces within the joint. Spray-applied fire sealant with a minimum one-half-inch overlap is applied to adjacent surfaces and omitted at non-rated assemblies. Alternating bent steel plates are coordinated with structural requirements for size, spacing, and attachment.
JOINT ASSEMBLY - SPRAY APPLIED FIRE SEALANT WITH MIN. 1/2" OVERLAP ON ADJACENT SURFACES. OMIT AT NON-RATED ASSEMBLY JOINT ASSEMBLY - MINERAL WOOL FORMING MATERIAL INSTALLED FLUSH TO ADJACENT SURFACES BENT STEEL PLATE (ALTERNATING) COORDINATE WITH STRUCTURAL FOR SIZE, SPACING AND ATTACHMENT PARTITION ASSEMBLY - RATED CONCRETE MASONRY UNITS OR 6" MIN. SOLID CONCRETE UL# HW-D-0109 ASSEMBLY RATING: ONE AND TWO HOUR FLOOR ASSEMBLY - MIN 4 1/2" STRUCTURAL CONCRETE 2" MAX (25% COMPRESSION OR EXTENSION) FLOOR ASSEMBLY - MIN 2 1/2" STRUCTURAL CONCRETE
