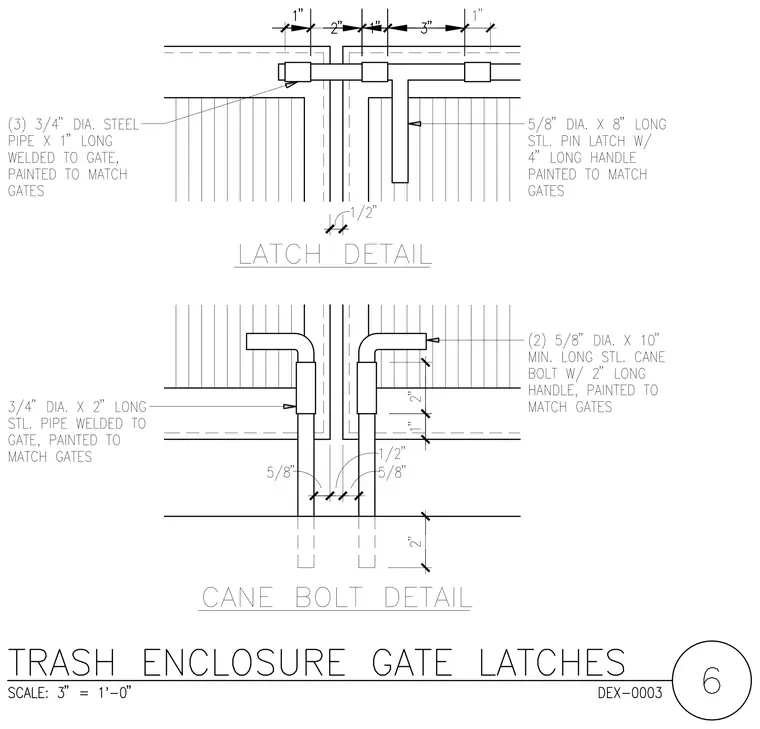

Trash enclosure gate hardware details showing a pin latch and cane bolts mounted to steel gates. The latch assembly includes three three-quarter-inch diameter steel pipes welded to the gate and painted to match, paired with a five-eighths-inch diameter by eight-inch long steel pin latch with a four-inch long handle. The cane bolt assembly features a pair of five-eighths-inch diameter by ten-inch minimum long steel cane bolts with two-inch long handles operating within three-quarter-inch diameter by two-inch long steel pipe guides welded to the gate. Clearances include a half-inch gap between gate leaves and various dimensional offsets for latch placement.
