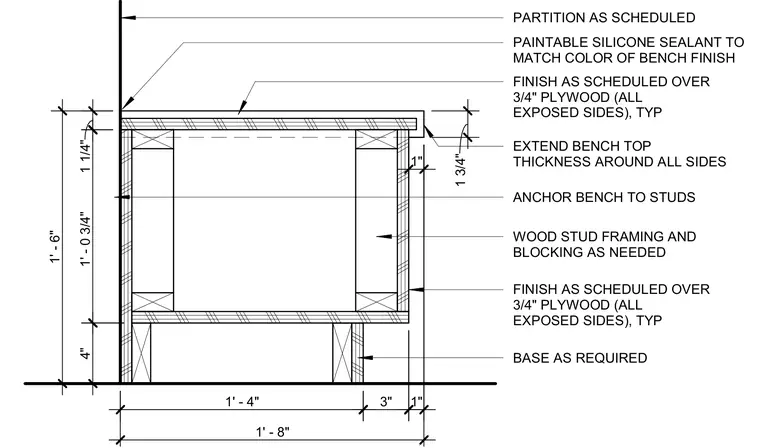

This wall-mounted accessible bench assembly is constructed with wood stud framing and blocking anchored directly to the wall studs. The top and exposed sides are finished as scheduled over three-quarter-inch plywood with the top thickness extended around all sides. The base is provided as required, and paintable silicone sealant matching the bench color is applied at the wall junction.
4" 1' - 0 3/4" 1 1/4" 1 3/4" 1" 1' - 6" 1' - 4" 3" 1" 1' - 8" FINISH AS SCHEDULED OVER 3/4" PLYWOOD (ALL EXPOSED SIDES), TYP WOOD STUD FRAMING AND BLOCKING AS NEEDED ANCHOR BENCH TO STUDS FINISH AS SCHEDULED OVER 3/4" PLYWOOD (ALL EXPOSED SIDES), TYP PAINTABLE SILICONE SEALANT TO MATCH COLOR OF BENCH FINISH PARTITION AS SCHEDULED BASE AS REQUIRED EXTEND BENCH TOP THICKNESS AROUND ALL SIDES
