An aluminum stair stringer connects to a concrete slab using an aluminum plate secured with two three-quarter-inch diameter stainless steel 316 threaded rods anchored into the concrete with Hilti RE-500 V3 epoxy at a six-inch embedment depth. Reinforcing bars in the slab must remain uncut and undamaged during drilling and installation.

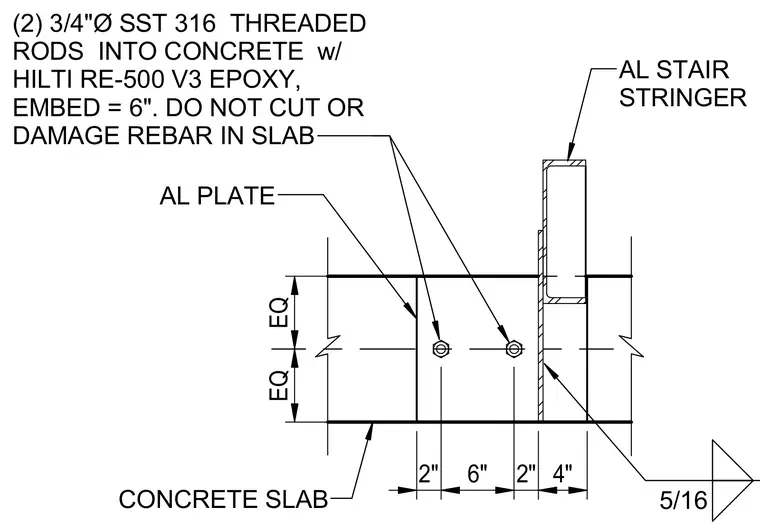

4" 2" 6" 2" EQ EQ (2) 3/4"Ø SST 316 THREADED RODS INTO CONCRETE w/ HILTI RE-500 V3 EPOXY, EMBED = 6". DO NOT CUT OR DAMAGE REBAR IN SLAB AL PLATE AL STAIR STRINGER 5/16 CONCRETE SLAB
