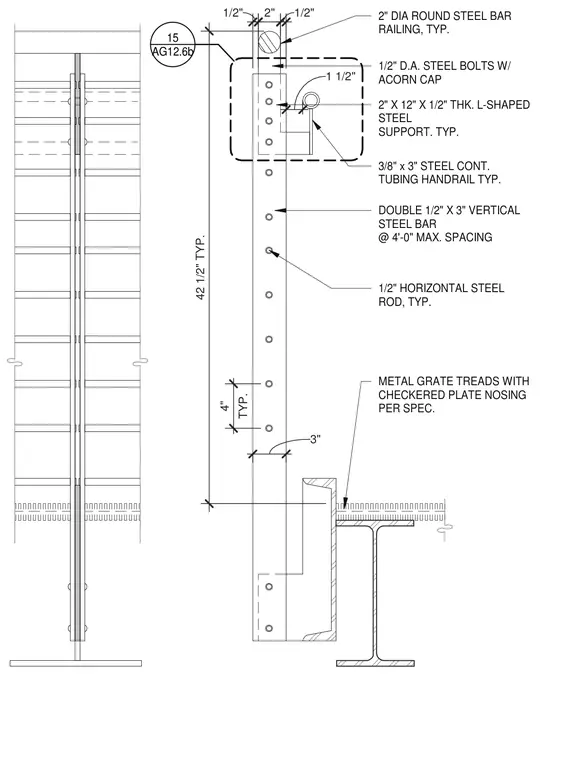

The assembly features a two-inch diameter round steel bar railing at the top, supported by double one-half inch by three-inch vertical steel bars spaced at a maximum of four feet on center. A continuous three-eighth inch by three-inch steel tubing handrail connects to the vertical supports using L-shaped steel supports measuring two inches by twelve inches by one-half inch thick, secured with one-half inch diameter steel bolts with acorn caps. One-half inch horizontal steel rods run through the vertical bars at typical spacings. Metal grate treads with checkered plate nosing rest on the structural steel stair framing below.
3" 1/2" 1/2" 2" 1 1/2" 42 1/2" TYP. TYP. 4" 2" DIA ROUND STEEL BAR RAILING, TYP. 1/2" D.A. STEEL BOLTS W/ ACORN CAP 2" X 12" X 1/2" THK. L-SHAPED STEEL SUPPORT. TYP. 3/8" x 3" STEEL CONT. TUBING HANDRAIL TYP. DOUBLE 1/2" X 3" VERTICAL STEEL BAR @ 4'-0" MAX. SPACING 1/2" HORIZONTAL STEEL ROD, TYP. METAL GRATE TREADS WITH CHECKERED PLATE NOSING PER SPEC. AG12.6b 15
