An exterior insulation finish system is applied over framed wall construction using cold-formed metal stud framing. The exterior wall assembly connects adjacent to a structural steel beam supporting the second floor level at fifteen feet zero inches elevation.

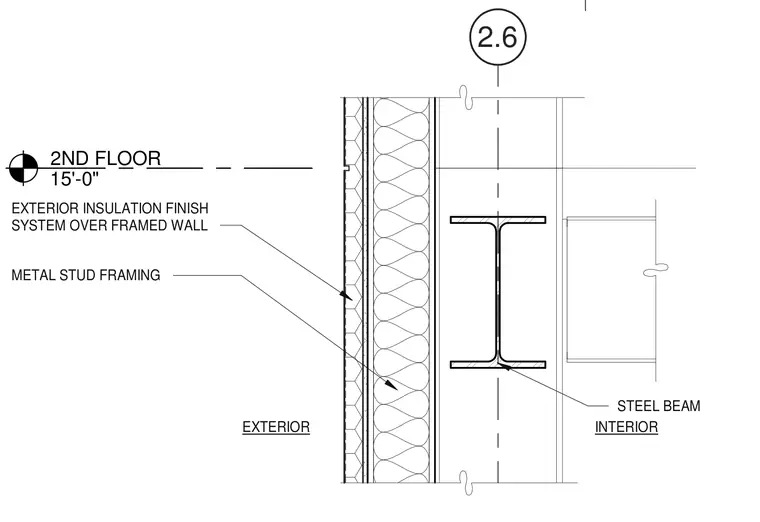

2.6 2ND FLOOR 15'-0" INTERIOR EXTERIOR EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL METAL STUD FRAMING STEEL BEAM
