The floor assembly comprises a waterproofing membrane, thinset mortar bed, and scheduled floor tile, terminating at a Schluter Dilex-AHK clear anodized aluminum transition strip. The wall assembly consists of a scheduled partition with a waterproofing membrane wrapped six inches up the wall, followed by a thinset mortar bed and scheduled wall tile. The top edge of the wall tile is finished with a Schluter clear anodized aluminum transition strip, with caulking applied at the top to provide an even finish against the painted edge.
Text on the drawing

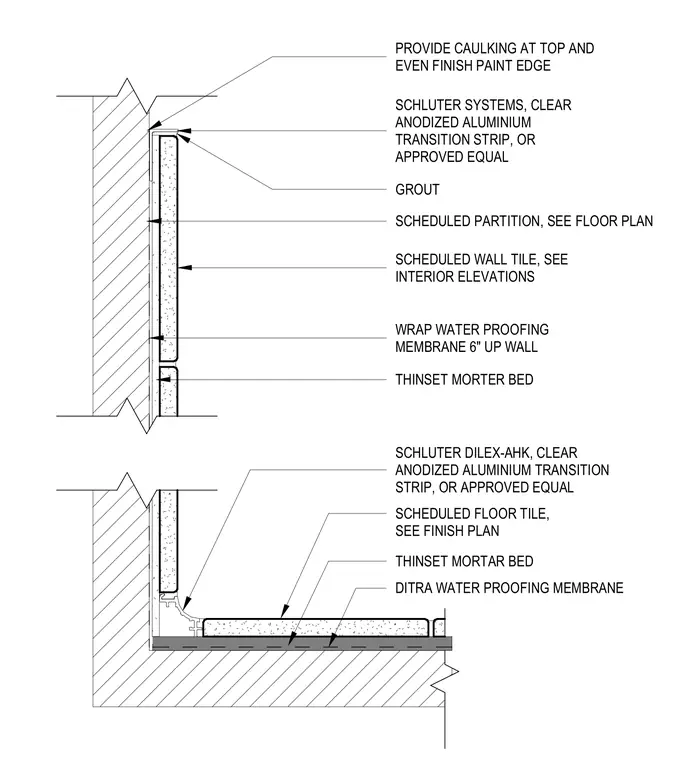

SCHEDULED PARTITION, SEE FLOOR PLAN WRAP WATER PROOFING MEMBRANE 6" UP WALL THINSET MORTER BED THINSET MORTAR BED DITRA WATER PROOFING MEMBRANE SCHLUTER DILEX-AHK, CLEAR ANODIZED ALUMINIUM TRANSITION STRIP, OR APPROVED EQUAL SCHLUTER SYSTEMS, CLEAR ANODIZED ALUMINIUM TRANSITION STRIP, OR APPROVED EQUAL PROVIDE CAULKING AT TOP AND EVEN FINISH PAINT EDGE GROUT SCHEDULED WALL TILE, SEE INTERIOR ELEVATIONS SCHEDULED FLOOR TILE, SEE FINISH PLAN
